Description of PCAP Touch Monitor

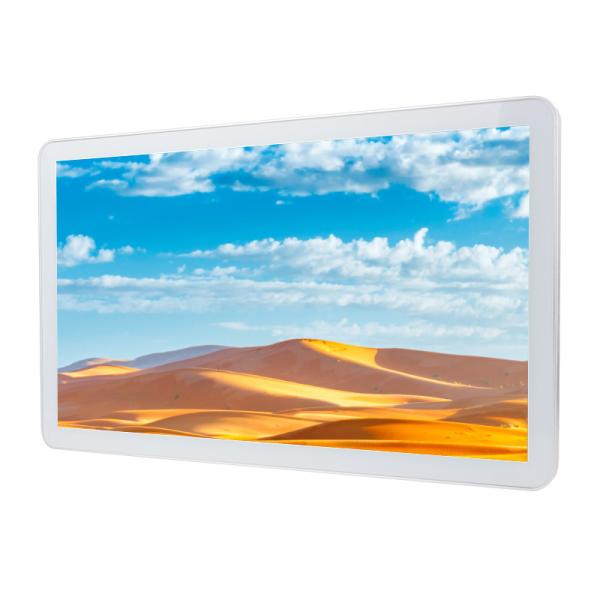

23.8 Inch PCAP Touch Monitor Touch Lcd Screen 1920x1080 High
Resolution For Kiosks
This PCAP touch monitor delivers main features as below: 1920*1080
high resolution, 3000:1 high contrast ratio, vandal-proof, IP65
front frame waterproof and dust-proof with wide viewing angle. The
PCAP touch monitor is industrial grade, durable and high-quality,
which can be normally used in harsh environment. Besides, OEM and
ODM services can be offered to meet customers’ individual needs.
Features:
- Product Name: PCAP Touch Monitor
- PCAP Touch Screen Panel
- Multi-Touch Digital Monitor
- PCAP Touch Screen Monitor
- Display Ratio: 16:9
- Touch Technology: Projected Capacitive Touch
- Contrast Ratio: 3000:1
- Video Input: VGA/DVI/HDMI
- Regular Warranty: 1 Year
Specification of PCAP Touch Monitor:
| Complete Machine |
| Model No. | KOT-0240U-CA2P (P/N:KOT-238P-005) |
| Series | OT |
| Display Type | 16:9 Ratio 23.8" TFT-LCD |
| Active Area | 527.04(H) x 296.46(V)(mm) |
| Monitor Dimensions (W*H*D) | 580.5*350*48.7(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 |
| Response Time (Typ.) | 12ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89°(Typ)/ 75°/75°(Min.) |
| Vertical(up/down) | 89°/89°(Typ)/ 75°/75°(Min.) |
| Contrast Ratio (Typ.) | 3000:1(Typ.)/1800:1(Min.) |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 6.5Kg(1pcs)/14.5Kg(2 pcs in one package) |
| Package dimensions | 650*195*435(mm)(2 pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
|
Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |

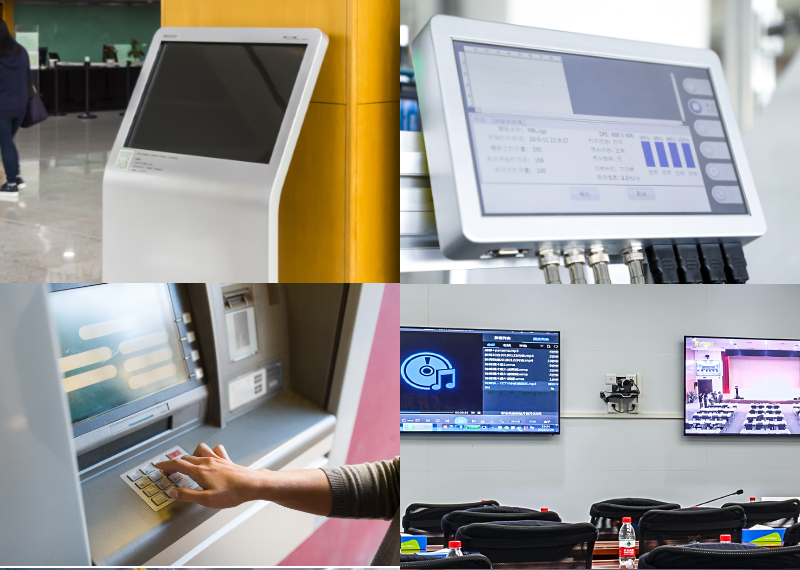

Applications:
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Support and Services:
PCAP Touch Monitor provides the following technical support and
services:
- 24/7 technical support
- Onsite installation and training
- Software and hardware maintenance
- Warranty repair and replacement
- Application development and integration
Advantages of PCAP Touch Monitor:
1. High sensitivity and accuracy: PCAP touch monitors offer excellent
touch sensitivity, allowing for precise touch input even with a
light touch.
2. Multi-touch support: PCAP touch monitors can support multiple
simultaneous touch inputs, enabling advanced gestures and providing
a more intuitive user experience.
3. Durability: PCAP touch monitors are built with a robust,
chemically-strengthened glass surface that is highly resistant to
scratches, wear, and damage.
4. Optical clarity: The glass surface of a PCAP touch monitor provides
excellent optical clarity, allowing for high-quality image
reproduction.
5. Slim and lightweight design: PCAP touch monitors typically have a
slim and lightweight profile, which makes them easy to integrate
into various systems and installations.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
17 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
