43 Inch PCAP Touch Monitor 1920x1080 Resolution for Kiosks
Description of PCAP Touch Monitor
This PCAP touch monitor comes with below main features: 1920*1080
resolution, 3000:1 contrast ratio, vandal-proof, IP65 waterproof
and dust-proof with full viewing angle. The PCAP touch monitor is
industrial grade, which is with high quality. Also, VGA, DVI and
HDMI interfaces are provided for use, USB port for touch. In
addition, with our professional R&D engineers, customized
services can be offered to meet your individual needs.
Specification of PCAP Touch Monitor
| Complete Machine |
| Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) |
| Series | OT |
| Display Type | 16:9 Ratio 43" TFT-LCD |
| Active Area | 942.9*531.25 (mm) |
| Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 380cd/m2 |
| With Touch Monitor | 320cd/m2 |
| Response Time (Typ.) | 6.5 ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 3000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 24V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -10～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 50,000 Hours |
| LED Back Light Life (Typ.) | 50,000 Hours |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
|
Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Touch Type | 43" Capacitive touch screens, antiglare and tempered type |
| Touch input | USB |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Regular Warranty | 1 year |
Specification of PCAP Touch Monitor

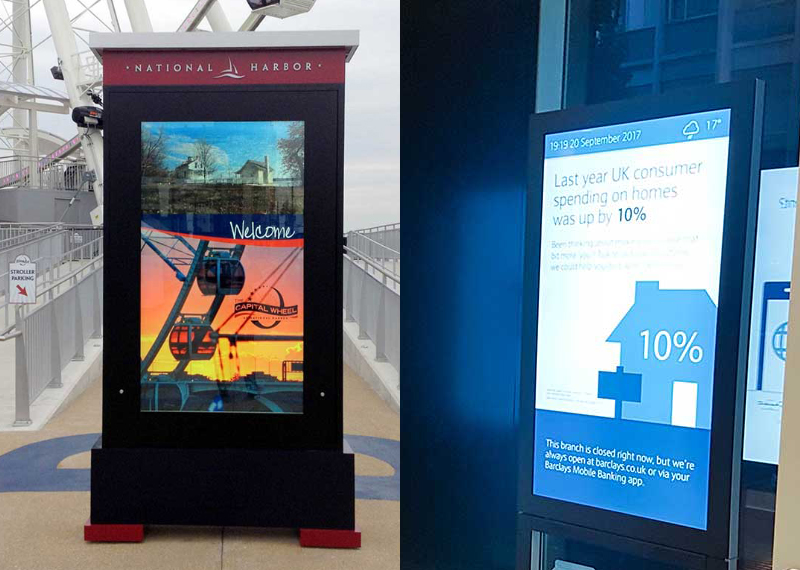

Application:
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of PCAP Touch Monitor
1. High sensitivity and accuracy: PCAP touch monitors offer excellent
touch sensitivity, allowing for precise touch input even with a
light touch.
2. Multi-touch support: PCAP touch monitors can support multiple
simultaneous touch inputs, enabling advanced gestures and providing
a more intuitive user experience.
3. Durability: PCAP touch monitors are built with a robust,
chemically-strengthened glass surface that is highly resistant to
scratches, wear, and damage.
4. Optical clarity: The glass surface of a PCAP touch monitor provides
excellent optical clarity, allowing for high-quality image
reproduction.
5. Slim and lightweight design: PCAP touch monitors typically have a
slim and lightweight profile, which makes them easy to integrate
into various systems and installations.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
17 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
