Kiosks 15 Inch Saw Touch Monitor With Compact Designed

Ask Lasest Price
Brand Name :	KeeTouch
Model Number :	KOT-0150US-SA4BCW (P/N:KOT-150C-004)
Certification :	CCC, UL, FCC, CE, CB, RoHS
Price :	Negotiable
Delivery Time :	7-15 work days
Payment Terms :	T/T, Western Union,L/C
Supply Ability :	10000 Piece/Pieces per Week

Add to Cart

Product Details
Company Profile

Kiosks 15 Inch Saw Touch Monitor With Compact Designed

Product Description:

Kiosks 15 Inch Saw Touch Monitor With Compact Designed

KeeTouch SAW touch monitor delivers high resolution, high light transmission with superior image clarity. The surface wave technology delivers precise and dependable touch experiences, making it an excellent choice for a wide range of applications. Multiple mounting options are available, including VESA mount and horizontal or vertical bracket mounting. Other sizes are optional.(7"-43")

Specification:

Complete Machine
Model No.	KOT-0150US-SA4BCW (P/N:KOT-150C-004)
Series	OT
Display Type	4:3 Ratio 15" TFT-LCD
Active Area	304.1*228.1(mm)
Monitor Dimensions (WHD)	336.4264.443.9(mm)
Suggested Resolution	1024*768 @ 60Hz
Support Colors	16.2M
Brightness (Typ.)	Pure LCD Panel	420cd/m2
	With Touch Monitor	378cd/m2
Response Time (Typ.)	5ms
Viewing Angle(Typ.at CR＞10))	Horizontal(left/right)	80°/80°
	Vertical(up/down)	80°/80°
Frequency (H/V)	30～60KHz / 60～75Hz
Power Supply	Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	50,000 Hours
LED Back Light Life (Typ.)	50,000 Hours
Weight(N.W/G.W)	3.5Kg(1pcs)/11Kg(2pcs in one package)
Package dimensions	429183356(mm)(2pcs in one package)
Power Consumption	Standby Power: ≤1.5W / Operating Power: ≤12W
Mount Interface	1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch Screen Type	KeeTouch 15" SAW 4 mm Compact Touchscreen
Touch System Interface	Having USB and Serial(RS232) Interface
Touch Response Time	USB/Serial: 8.4/10.4ms
Agency approvals	CCC, UL, FCC, CE, CB, RoHS
Regular Warranty	1 year

Applications:

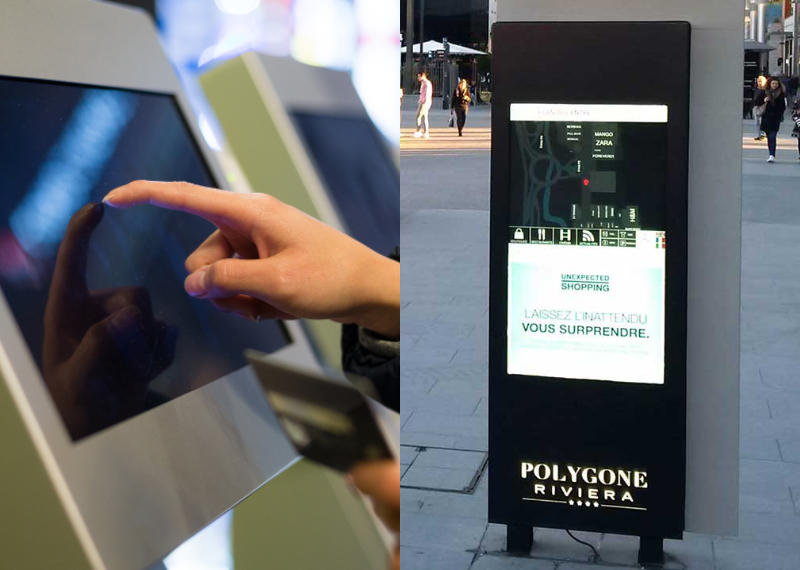

KeeTouch products find extensive applications across various industries, including kiosks, retail, public services, gaming, self-service, finance, transit, payment systems, conferences, education, healthcare, e-commerce, hotels, restaurants, travel services, museums, exhibitions, smart homes, subways, railway stations, control and operation systems, airports, and entertainment, among others.

FAQ:

1.What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.

2. What is your warranty period for the SAW Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

3. Can you produce the SAW Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

4.Do you give any discount for the SAW touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
