21.5'' IR Touch Monitor 1000:1 Contrast Ratio For Smart Lockers
Description of IR Touch Monitor
This 21.5 inch IR touch monitor comes with Infrared touch
technology, durable with IP65 front frame waterproof, dust-proof
functions, which can be used normally in harsh environments. This
IR touch monitor supports various operation systems: XP, WIN7,
WIN8, WIN10, Linux, Android. Also, it provides VGA/DVI interfaces
for use, USB port for touch. This IR touch monitor supports various
mounting options, including VEST mount, horizontal or vertical
brackets mount. What's more, other sizes are optional (15-65").
Infrared Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0215U-IR3P (P/N:KOT-215C-007) |
| Series | OT |
| Active Area | 478*270(mm) |
| Monitor Dimensions (W*H*D) | 520*312*45.8(mm) |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Frequency (H/V) | 40～80KHz / 50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 17.25Kg(2pcs)/20.5Kg(2pcs in one package) |
| Package dimensions | 605*195*400(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Regular Warranty | 1 year |
Infrared Touch Monitor Mechanical Dimensions

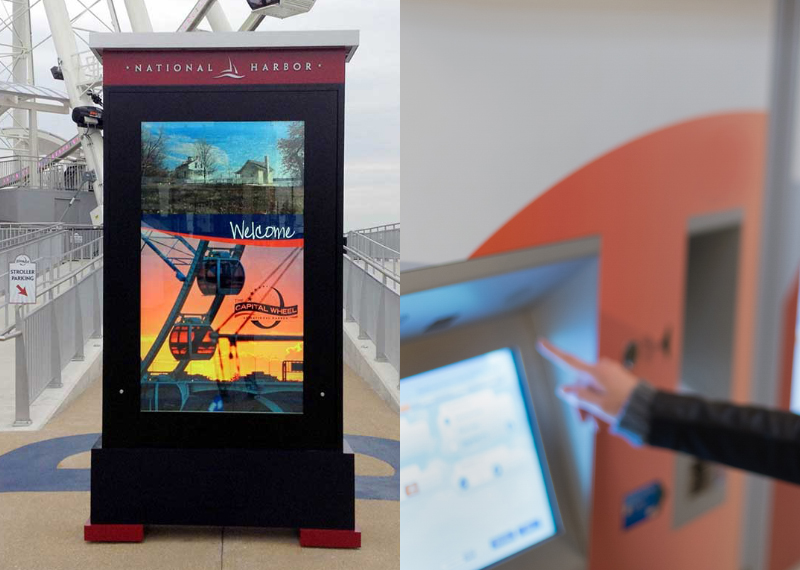

Applications
IR Touch Monitors are widely used in industries such as retail,
gaming, public service, self-service, finance, transit, conference,
kiosk, education, healthcare, e-commerce, hotels, restaurants,
travel service, payment systems, museums, exhibitions, smart home,
subways, railway stations, control and operation systems, airports,
entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can
offer OEM and ODM services to meet customer’s individual
requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the
certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc for the products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ:
1. Can you produce the IR Touch Monitor according to the customer's
requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and
Alipay.(L/C can be negotiable.)
3. What is your delivery time for the IR Touch Monitor ?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
