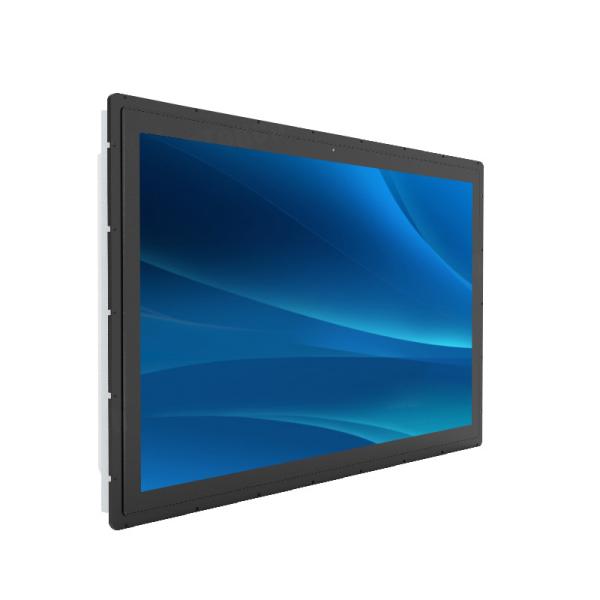

32 Inch High Brightness IP65 Waterproof Touch Monitor Anti Glare

Ask Lasest Price
Brand Name :	KeeTouch
Model Number :	KOT-320P-025(KOT-0320U-CA4PH)
Certification :	CCC, UL, FCC, CE, CB, RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000 Pieces per Week
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

32 Inch High Brightness IP65 Waterproof Touch Monitor Anti Glare

32 Inch High Brightness Touch Monitor Anti-Glare IP65 Waterproof

High Brightness Touch Monitor Main Features

PCAP touch technology, high-sensitivity with excellent interactive experience
High brightness, visible under direct sunlight, 1000 -2000 nits optional
4000:1 high contrast ratio, full viewing angle with super image quality
Anti-glare and anti-vandal high brightness touch monitor
Pure flat designed high brightness touch monitor, IP65 front side waterproof
VGA & DVI & HDMI interfaces,USB for touch
Support system: XP, WIN7, WIN8, WIN10, Linux, Android
Other sizes can be offered (8’’- 43’’)

High Brightness Touch Monitor Specifications

Complete Machine
Model No.	KOT-0320U-CA4PH (P/N:KOT-320P-025)
Series	OT
Display Type	16:9 Ratio 32" TFT-LCD
Active Area	698.4*392.85 (mm)
Monitor Dimensions (WHD)	78047484.2(mm)
Suggested Resolution	1920x1080 @ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	1000cd/m2 , 1500cd/m2 , 2000cd/m2
	With Touch Monitor	850cd/m2 , 1250cd/m2 , 1650cd/m2
Response Time (Typ.)	6.5ms
Viewing Angle(Typ.at CR＞10))	Horizontal(left/right)	89°/89°
	Vertical(up/down)	89°/89°
Contrast Ratio (Typ.)	4000:1(Typ.)/3000:1(Min.)
Video Input	VGADVIHDMI
Frequency (H/V)	60～73KHz / 47～63Hz
Power Supply	Type: External brick Display voltage: DC 24V/ 10A Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	30,000 Hours
LED Back Light Life (Typ.)	30,000 Hours
Power Consumption	≤150W/190W/240W
Mount Interface	Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, UL, FCC, CE, CB, RoHS
Regular Warranty	1 year

Touch Screen
Touch Type	32" Capacitive touch screens
Touch input	USB
Response Time	≤10ms
Hardness	≥6H
Light Transmittance	≥83%
Support System	XP,WIN7,WIN8,WIN10,Linux,Android
Touch Test	≥50,000,000 times
Input Voltage	DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

High Brightness Touch Monitor Mechanical Dimensions

Products Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the high brightness touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
