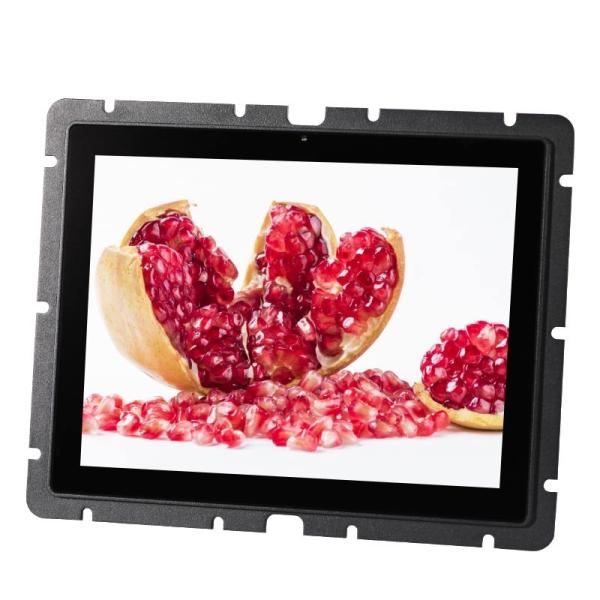

    High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved

    Ask Lasest Price
    Brand Name : KeeTouch
    Model Number : KOT-0104U-CA4PH (KOT-104P-010)
    Certification : CCC, UL, FCC, CE, CB, RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 Pieces per Week
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved

    10.4 Inch High Brightness Touch Monitor 1500 Nits For Outdoor Use


    High Brightness Touch Monitor Main Features

    • KeeTouch PCAP touch screen, multi-touch points, great interactive experience
    • High brightness, visible under direct sunlight
    • 1000:1 high contrast ratio, high image quality with broad viewing angle
    • Anti-vandal high brightness touch monitor
    • VGA & DVI interfaces, USB for touch
    • Support system: XP, WIN7, WIN8, WIN10, Linux, Android
    • Other sizes are optional (7’’- 43’’)

    High Brightness Touch Monitor Specifications

    Complete Machine
    Model No.KOT-0104U-CA4PH (P/N:KOT-104P-011)
    SeriesOT
    Display Type4:3 Ratio 10.4" TFT-LCD
    Active Area213*160.2(mm)
    Monitor Dimensions (W*H*D)276.4*219.4*43.5(mm)
    Suggested Resolution1024*768 @ 60Hz
    Support Colors16.2M
    Brightness (Typ.)Pure LCD Panel≥1500cd/m2
    With Touch Monitor≥1240cd/m2
    Response Time (Typ.)16ms
    Viewing Angle(Typ.at CR>10))Horizontal(left/right)80°/80°
    Vertical(up/down)80°/80°
    Contrast Ratio (Typ.)1000:1
    Video InputVGA/DVI
    Frequency (H/V)30~80KHz / 60~75Hz
    Power Supply

    Type: External brick

    Display voltage: DC 12V±5% 3.3A

    Input (line) voltage: 100-240 VAC, 50-60 Hz

    EnvironmentOperating Temp.-15~50°C
    Operating RH20%~80%
    Storage Temp.-20~60°C
    Storage RH10%~90%
    MTBF≥ 30,000 Hours
    LED Back Light Life (Typ.)≥ 30,000 Hours
    Power ConsumptionStandby Power: ≤1.5W / Operating Power: ≤18W
    Mount Interface

    1. VESA 75mm

    2. Mount bracket, horizontal or vertical mount


    Weight(N.W/G.W)2.2Kg(1pcs) /6.4Kg(2pcs in one package)
    Package dimensions350*221*298(mm)(2pcs in one package)
    OSD ControlButtonsAUTO,+,POWER,-,MENU
    FunctionBrightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Agency approvalsCCC, ETL, FCC, CE, CB, RoHS
    Regular Warranty1 year

    Touch Screen
    Touch Type10.4" capacitive touch screens
    Touch inputUSB
    Response Time≤10ms
    Hardness6H
    Light Transmittance>80%
    Support System

    Multi-Touch : WIN7,WIN8,WIN10

    Single Touch : XP

    Active Area215.6*163(mm)
    Thickness3.75±0.2mm
    Touch Test≥ 50,000,000 次
    Input VoltageDC 5V±5%

    NOTE :

    ① The display SPEC. are adjusted according to the selected LCD screen and touch screen

    ② The support system is adjusted according the specific system and version.


    High Brightness Touch Monitor Mechanical Dimensions



    Products Applications


    KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



    FAQ


    1. Are you a manufacturer?

    Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


    2. What’s your MOQ for the high brightness touch monitor?

    Our minimum order quantity is 1pc only.


    3. What is your warranty period for the high brightness touch monitor?

    Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


    4. Can you produce the high brightness touch monitor according to the customer's requirements?

    Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
