10.4 Inch High Brightness Touch Monitor Vandal-Proof Touch Panel
High Brightness Touch Monitor Main Features
This high brightness PCAP touch monitor comes with features as
following: 1024x768 high resolution, 4:3 ratio, broad viewing angle
and 1000:1 contrast ratio. Also, it has anti-vandal function. VGA
and DVI interfaces are provided, and a USB port for touch input.
Multiple mounting methods are available, including VESA mount,
horizontal and vertical brackets mount. Also, other sizes
(7’’-43’’) are for your option.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0104U-CA4PH (P/N:KOT-104P-011) |
| Series | OT |
| Display Type | 4:3 Ratio 10.4" TFT-LCD |
| Active Area | 213*160.2(mm) |
| Monitor Dimensions (W*H*D) | 276.4*219.4*43.5(mm) |
| Suggested Resolution | 1024*768 @ 60Hz |
| Support Colors | 16.2M |
| Brightness (Typ.) | Pure LCD Panel | ≥1500cd/m2 |
| With Touch Monitor | ≥1240cd/m2 |
| Response Time (Typ.) | 16ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥ 30,000 Hours |
| LED Back Light Life (Typ.) | ≥ 30,000 Hours |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤18W |
| Mount Interface | 1.VESA 75mm 2.Mount bracket, horizontal or vertical mount
|
| Weight(N.W/G.W) | 2.2Kg(1pcs) /6.4Kg(2pcs in one package) |
| Package dimensions | 350*221*298(mm)(2pcs in one package) |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 10.4" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >80% |
| Support System | Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Active Area | 215.6*163(mm) |
| Thickness | 3.75±0.2mm |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.

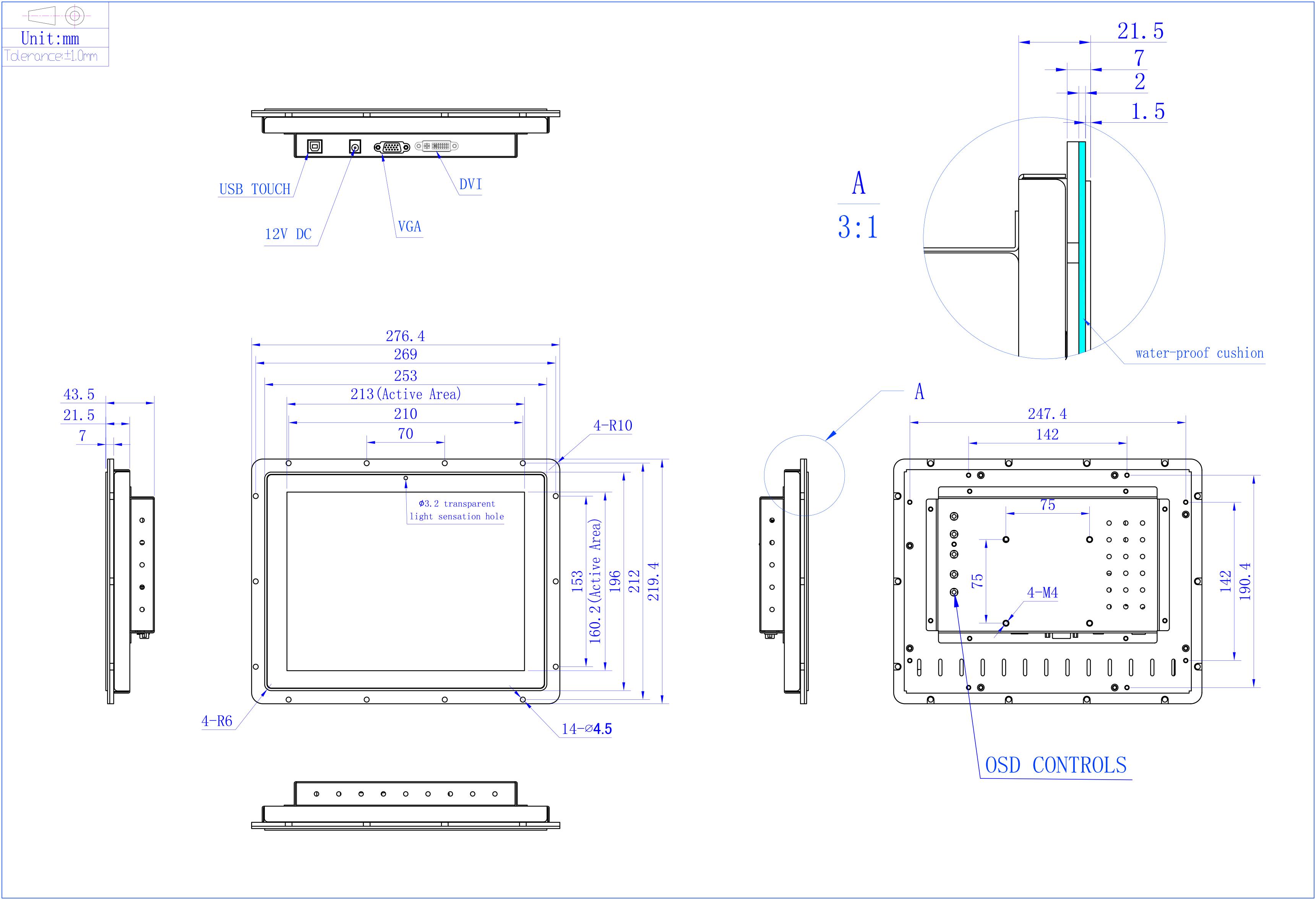

High Brightness Touch Monitor Mechanical Dimensions
Products Applications
KeeTouch products are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What is your warranty period for the high brightness touch
monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
7. Do you give any discount for the high brightness touch monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
