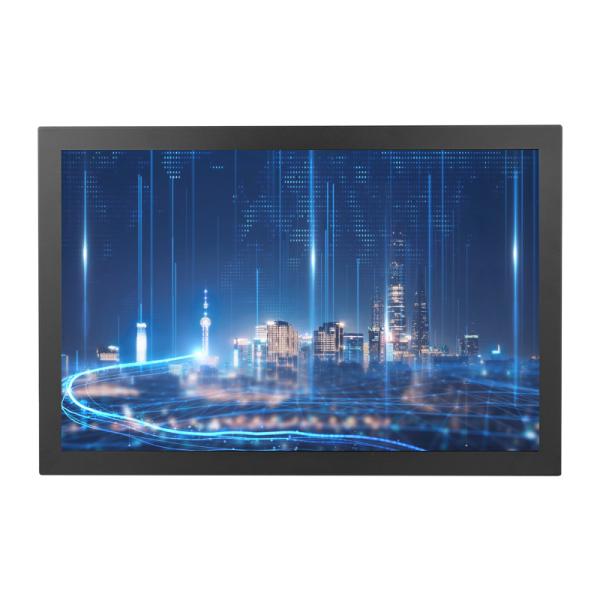

19 Inch PCAP Touch Monitor IP65 Surface Water-Proof
PCAP Touch Monitor Description
This PCAP touch monitor comes with anti-vandal functions and IP65
front frame water-proof, delivering superior quality image with
great touch experience. The VGA, DVI and USB interfaces are
provided for use. With our own R&D department, customized
services can be offered. Besides, other sizes (7’’-43’’) are for
your option.
PCAP Touch Monitor Specifications
| Model No. | KOT-0190U-CA2P169 |
| Series | OT, Wide-screen , LED backlight |
| Display Type | 16:10 Ratio 19" Active matrix TFT-LCD |
| Display Active Area | 408.5×255. 5(mm) |
| Touch Monitor Dimensions | Width: 452mm Height: 299mm Depth: 51mm |
| Suggested Resolution | 1440×900 @ 60Hz |
| Support Colors | 16.7M |
| Brightness(Typ.) | Pure LCD Panel (Brightness from 300~1000nits can be customized ) | 250cd/m2 |
| With Projected Capacitive Touchscreen | 212cd/m2 |
| Response Time(Typ.) | 5ms |
Viewing Angle (Typ.at CR>10) | Horizontal(left/right): 85°/85° |
| Vertical(up/down): 80°/80° |
| Contrast Ratio(Typ.) | 1000:1 |
| Video Input | VGA and DVI |
| Frequency(H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operation Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operation RH | 20%～80% |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life(Typ.) | 30,000 Hours |
| Weight(N.W/G.W) | 5.5Kg(1pcs) / 13.75Kg (2pcs in one package) |
| Package Dimension | 525×220×380(mm)(2pcs in one package) |
| Power Consumption | 20W |
| Standby Power Consumption | 0.95W |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen Type | 19" Projected Capacitive touch sceen, 10 points in win7 |
| Touch System Interface | USB / RS-232(optional) |
| Touch Response time | 10ms |
| Agency Approval | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 Year |
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
