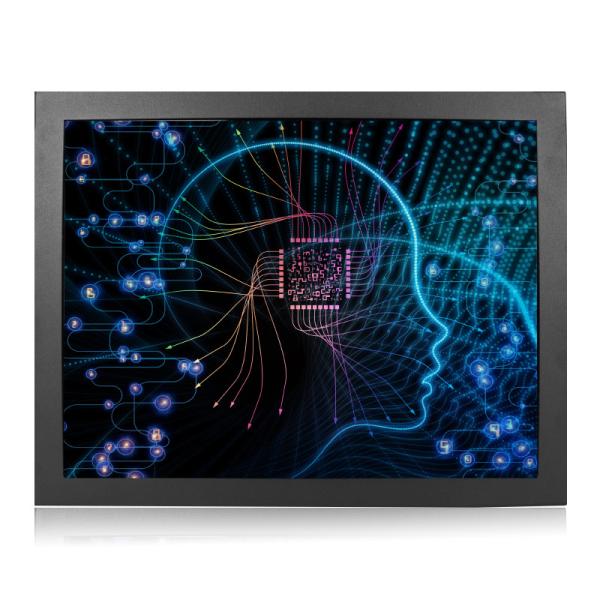

12.1 Inch PCAP Touch Monitor 4:3 Ratio Display For Kiosks
PCAP Touch Screen Product Description
This high resolution lcd monitor offers fast response and high sensitivity, with a high resolution
of 1400x1050 and high contrast that delivers excellent image
quality. It also provides multiple mounting options, including VESA
mount, horizontal and vertical brackets mount, and is compatible
with operating systems such as XP, WIN7, WIN8, and WIN10.
Additionally, other sizes ranging from 7’’ to 43’’ can be offered.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0121U-CA4P (P/N:KOT-121P-010) |
| Series | OT |
| Display Type | 4:3 Ratio 12.1" TFT-LCD |
| Active Area | 245.8*184.3(mm) |
| Monitor Dimensions (W*H*D) | 281*219.5*44.5(mm) |
| Suggested Resolution | 1400*1050 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 350cd/m2 |
| With Touch Monitor | 297cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 50°/50° |
| Vertical(up/down) | 45°/50° |
| Contrast Ratio (Typ.) | 800:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥ 50,000 Hours |
| LED Back Light Life (Typ.) | ≥ 50,000 Hours |
| Weight(N.W/G.W) | 2.3Kg(1pcs) / 5.25Kg(2pcs in one package) |
| Package dimensions | 373*170*317(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤12W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 12.1" Riot capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Active Area | 247.5*186.5(mm) |
| Thickness | 3.3±0.2(mm) |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
PCAP Touch Monitor Mechanical Dimensions
PCAP Touch Monitor Main Features
1. Sensitivity: 17 touch screen monitor is very sensitive and can achieve smooth and precise touch
interaction even with light touch or using a stylus.
2. Multi-touch function: PCAP technology supports multi-touch
function and can detect multiple touch points at the same time.
This allows for more complex and natural user interactions, such as
two-finger zooming, rotating, and sliding gestures.
3. Durable: flat touch screen monitor is made with a glass surface and is more durable than resistive
touch screens. It is more resistant to scratches, wear and tear,
and this leads to longer device lifespan.
Applications
waterproof touchscreen monitor are widely used in industries such as follows:
- retail
- gaming
- kiosk
- self-service
- finance
- transit
- conference
- education
- healthcare
- public service
- e-commerce
- hotels
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the flat panel touch screen?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the PCAP Touch Monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
