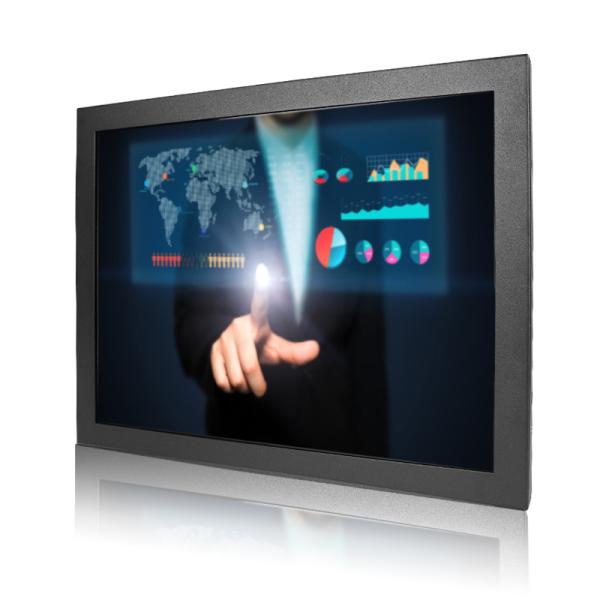

12.1 Inch PCAP Touch Monitor Open Frame Touch Display
PCAP Touch Screen Product Description
This industrial touch monitor comes with features as following: 1400x1050 high resolution, 800:1
contrast ratio, wide viewing angle and 4:3 ratio. Also, It has
anti-vandal function. DVI, VGA and HDMI interfaces are provided for
use, and the USB port for touch. Multiple mounting methods are for
your option, including VESA mount, horizontal and vertical brackets
mount. According to your requirements, other sizes (7’’-43’’) can
be offered or customized.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0121U-CA4P (P/N:KOT-121P-010) |
| Series | OT |
| Display Type | 4:3 Ratio 12.1" TFT-LCD |
| Active Area | 245.8*184.3(mm) |
| Monitor Dimensions (W*H*D) | 281*219.5*44.5(mm) |
| Suggested Resolution | 1400*1050 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 350cd/m2 |
| With Touch Monitor | 297cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 50°/50° |
| Vertical(up/down) | 45°/50° |
| Contrast Ratio (Typ.) | 800:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| MTBF | ≥ 50,000 Hours |
| LED Back Light Life (Typ.) | ≥ 50,000 Hours |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤12W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 12.1" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Active Area | 247.5*186.5(mm) |
| Thickness | 3.3±0.2(mm) |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.

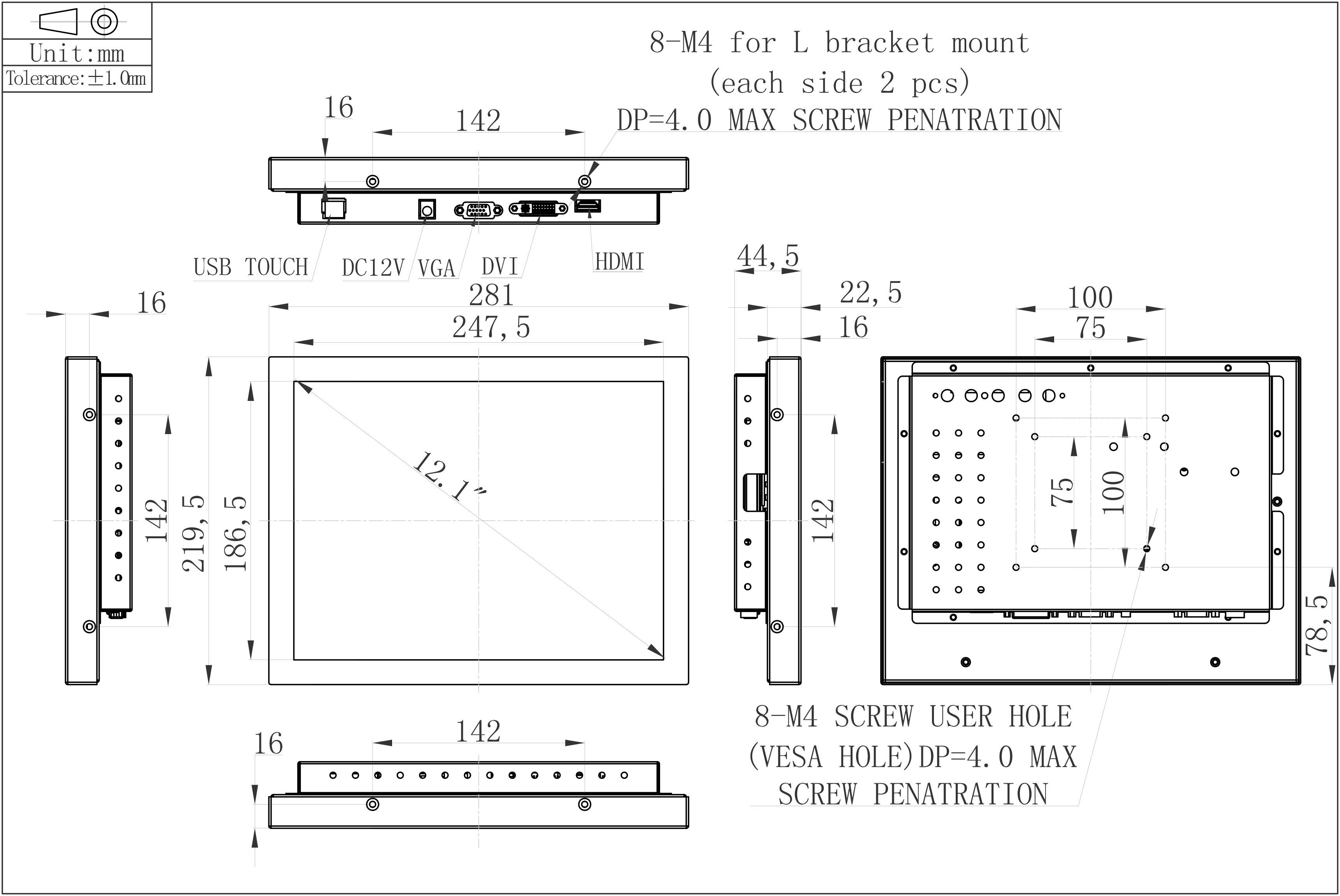

PCAP Touch Monitor Mechanical Dimensions
PCAP Touch Monitor Main Features
1. Customizable Design: The technology behind large lcd touch screen monitor allows for customized designs, such as curved or flexible screens,
to meet specific application requirements or aesthetics.
2. Low Power Consumption: tft lcd touch screen typically consume less power compared to other touch technologies,
making them more energy-efficient and environmentally friendly.
Applications
our pcap touch panel product is easy to install and can be mounted
in a variety of ways, including on a stand, wall, or kiosk. With
its sleek design and reliable performance, portable monitor
touchscreen is the perfect solution for businesses, education, healthcare, and
other industries that require a high-quality touch screen display.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
7. Do you give any discount for the PCAP Touch Monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
