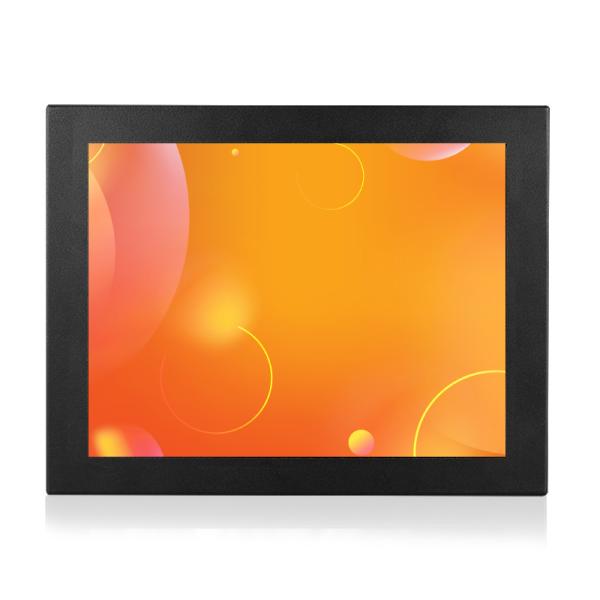

10.4 Inch SAW Touch Monitor VGA Interface For Smart Lockers
Description of SAW Touch Monitor
SAW touch monitor uses ultrasonic waves to detect touch input. The
product is highly durable and can withstand harsh environments. It
also has good clarity and image quality, making them ideal for use
in various applications.
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0104U-SA4BP (P/N:KOT-104P-002) |
| Series | OT |
| Display Type | 4:3 Ratio 10.4" TFT-LCD |
| Active Area | 211.2*158.4(mm) |
| Monitor Dimensions (W*H*D) | 257*199*45.5(mm) |
| Suggested Resolution | 800*600 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 270cd/m2 |
| Response Time (Typ.) | 20ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 75°/75° |
| Vertical(up/down) | 50°/60° |
| Contrast Ratio (Typ.) | 500:1 |
| Video Input | VGA |
| Frequency (H/V) | 37.9～46.9KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Power Consumption | Standby Power: ≤1W / Operating Power: ≤8W |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 10.4" Surface acoustic wave touch screen |
| Touch input | USB |
| Response Time | ≤8ms |
| Support System | XP,WIN7,WIN8,WIN10 |
| Active Area | 212*159(mm) |
| Thickness | 4.0±0.1(mm) |
SAW Touch Monitor Mechanical Dimensions

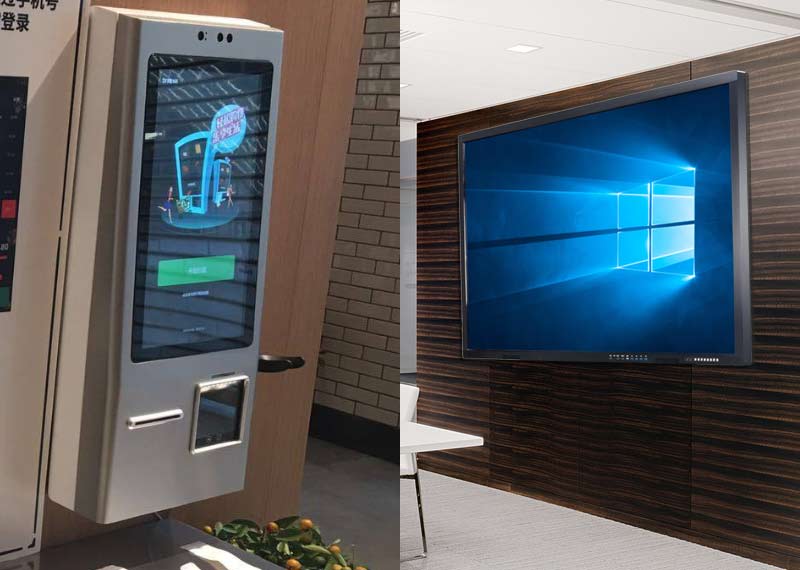

touch screen wall monitor Applications
SAW Touch Monitor are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Feature of PCAP Touch Monitor
High image clarity: big touch screen monitor can provide excellent image clarity because there is no touch
overlay layer on the screen surface.
Resistance to external factors: lcd monitor touch screen are scratch-resistant and can function normally even when exposed
to extreme temperatures or high humidity.
Why choose us?
1. Quality products: All our products have passed strict quality
inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’
prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round,
the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at
any time to provide services to customers.
FAQ:
1. What package do you provide for the SAW Touch Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
4. Do you give any discount for the open frame display?
We will do utmost to support you with the competitive price, also
good service will be offered.
