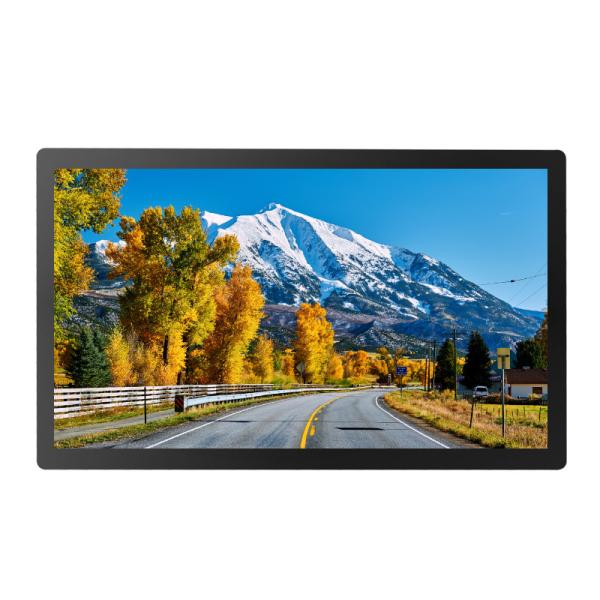

21.5 Inch Industrial Touchscreen Computer 1920x1080 Resolution
Description of Industrial Touchscreen Computer
This 21.5 inch industrial touchscreen computer comes with Projected
Capacitive touch technology with high resolution and full viewing
angle. It is industrial touchscreen computer, IP65 waterproof, pure
flat, sleek and fashionable. In addition,with R&D engineers,
OEM and ODM are welcomed. Other sizes (7’’-43’’) can be offered or
customized
Specification of Industrial Touchscreen Computer
| KTP-215UM-007 |
| Model No. | P/N:KTP-215M-002 |
| Series | Touch Computer |
| Computer Configuration | CPU:Intel Celeron J1900, clock speed 2G, Quad-core, TDP 10W |
| RAM: DDR3, 2G/4G |
| Hard disk:HDD,500G / SSD:32G/60G/120G |
| Wireless:1*802.11b/g/n , |
| I/O interface:3-COM, 4-USB,1-LAN RJ45, 1-VGA,1-HDMI,
1-Audio(1-3.5mm line-out and mic-in) |
| OS(optional) | Windows xpWindows7Ubuntu |
| Display Active Area | 18.8”(476.64mm) x 10.6”(268.11mm) |
| Touch PC Dimensions | Width: 518mm |
| Height: 313mm |
| Depth: 50.2mm |
| Suggested Resolution | 1920×1080 @ 60Hz |
| Response Time(Typ.) | 25ms |
| Contrast Ratio(Typ.) | '3000:1 |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
| MTBF | 30,000 Hours |
| Back light Life(Typ.) | 30,000 Hours |
| Weight(N.W/G.W) | N.W:6.2Kg(single)/G.W:14.1Kg (2pcs in one package) |
| package Dimensions | 675LX480HX230W mm (2pcs in one package) |
| Power Consumption | 35W(APPROX) |
| Standby power consumption | 0.80W (APPROX) |
| Mount Interface | VESA 75mm and 100mm |
| Touch screen Type | 21.5" Projected Capacitive Touchscreen, 10 points in win7 |
| Regular Warranty | 1 year |
Industrial Touch Screen Display Mechanical Dimensions
Industrial Panel PC Application:
industrial touchscreen computer waterproof are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Advantages of PCAP Industrial Touchscreen Computer
1. Multitouch capability: industrial touchscreen computer 15 inch support multitouch gestures such as pinch-to-zoom and swipe, making
them more intuitive and user-friendly.
2. High-resolution display: industrial touch screen monitor typically have high-resolution displays, providing sharp and clear
visuals for applications such as machine control, process
monitoring, and data visualization.
3. Flexibility: PCAP industrial touchscreen computers can be
integrated with various hardware and software systems to meet
specific application requirements. They can also be mounted in
different orientations and configurations to fit different
installation spaces.Overall, PCAP industrial touchscreen computers offer a reliable,
durable, and user-friendly solution for a wide range of industrial
applications.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization.
With over 40 professional R&D engineers, we can offer OEM and
ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with
the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ
1. Can you produce the Industrial Touchscreen Computer according to
the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the Industrial Touchscreen
Computer?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
