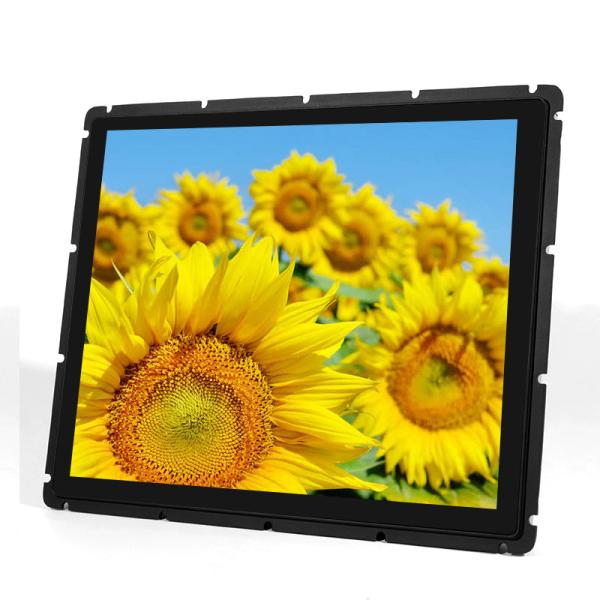

15 inch Industrial Touchscreen Computer 1920x1080 Resolution
Industrial Grade
Description of Industrial Touchscreen Computer
This 15 inch industrial touchscreen computer review comes with Projected Capacitive touch screen with high resolution
and wide viewing angle. It is industrial grade all-in-one touch
computer, sleek and fashionable. Also, with various I/O ports,
support a range of third-party peripherals. In addition, the CPU
configurations can be customized per customer’s individual
requirements.
Industrial Touchscreen Computer Specifications
| Complete Machine |
| Model No. | KOT-0150U-CA4P (P/N:KTP-150M-002-02) |
| Series | All-in-One Touch Computer |
| Display Type | 5:4 Ratio 15" TFT-LCD |
| Active Area | 304.1*228.1 (mm) |
| Monitor Dimensions (W*H*D) | 360.5*292*72 (mm) |
| Suggested Resolution | 1024*768 @ 60Hz |
| Support Colors | 16.2M |
| Response Time (Typ.) | 25ms |
| Contrast Ratio (Typ.) | 700:1 |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Computer parameters | CPU | Freescale i.HX6Q(4 Core) |
| RAM | Onboard memory: Support DDR3, 2GB(default); Onboard storage:
8GB(default) EMMC Flash |
| Interface | 4*USB, 1*HDMI, 5* serial port, LAN*1 |
| LVDS | LVDS*1 (dual channel), supports 24Bit |
| HDMI | Support HDMI2.0, Max Resolution: 1080p@120Hz |
| LAN | RJ45(10/100/1000Mbps) |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Mount Interface | 1.VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 15" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤8ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | Android/windows(optional) |
| Active Area | 305.1*229.1 (mm) |
| Thickness | 4.3±0.2 (mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
The Industrial Touchscreen Computer Mechanical Dimensions
Application:
industrial touchscreen computer solution are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Advantages of PCAP Industrial Touchscreen Computer
1. Multitouch capability: PCAP touchscreens support multitouch
gestures such as pinch-to-zoom and swipe, making them more
intuitive and user-friendly.
2. High-resolution display: high brightness panel pc typically have high-resolution displays, providing sharp and clear
visuals for applications such as machine control, process
monitoring, and data visualization.
3. Flexibility: industrial touchscreen computer linux can be integrated with various hardware and software systems to
meet specific application requirements. They can also be mounted in
different orientations and configurations to fit different
installation spaces.Overall, PCAP industrial touchscreen computers offer a reliable,
durable, and user-friendly solution for a wide range of industrial
applications.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization.
With over 40 professional R&D engineers, we can offer OEM and
ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with
the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ
1. Can you produce the Industrial Touchscreen Computer according to
the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the Industrial Touchscreen
Computer?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
