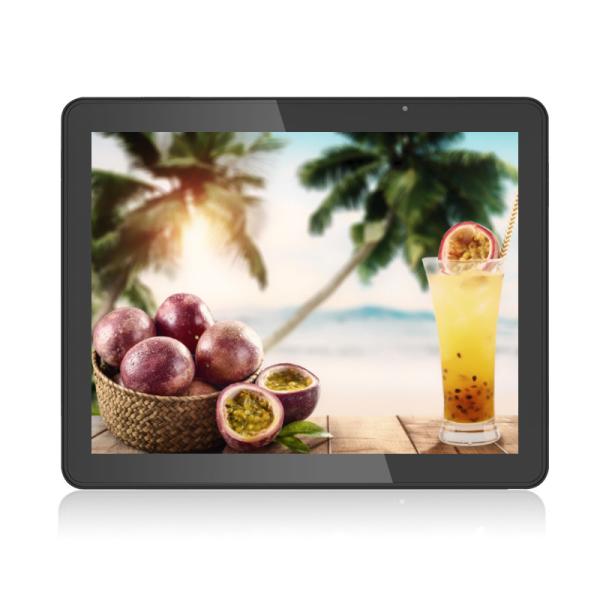

15 Inch High Brightness Touch Monitor 1000 Nits For Outdoor Kiosks
Description of High Brightness Touch Monitor
This High brightness touch monitor with wide viewing angle,
accuracy and multi-touch support, which can be used normally in
harsh environments. With 1000 nits high brightness, it is an great
choice for outdoor use. Also, VGA and DVI interfaces are provided
for use, USB port for touch. And other sizes are for your option.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0150U-CA4PH(KOT-150P-014-02) |
| Series | OT |
| Display Type | 5 : 4 Ratio 15" TFT-LCD |
| Active Area | 304.1*228.1 (mm) |
| Monitor Dimensions (W*H*D) | 353.5*284.5*65.3 (mm) |
| Suggested Resolution | 1024*768 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1000cd/m2 |
| With Touch Monitor | 830cd/m2 |
| Response Time (Typ.) | 21ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° |
| Frequency (H/V) | 40～90KHz / 55～70Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Weight(N.W/G.W) | 4.95Kg(1pcs) |
| Package dimensions | 495*250*425(mm)(2pcs in one package) |
| Touch screen Type | 15”Projected Capacitive Touchscreen |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
Anti-glare touch monitor Mechanical Dimensions
Touch monitor for outdoor use Applications
High brightness touch monitor manufacturers are widely used in
industries such as retail, gaming, kiosk, self-service, finance,
transit, conference, education, healthcare, public service,
e-commerce, hotels, restaurants, travel service, payment systems,
museums, exhibitions, smart home, subways, railway stations,
control and operation systems, airports, entertainments, etc.
Advantages of High Brightness Touch Monitor
1. Improved visibility: Sunlight resistant touch monitor typically have a brightness level of 1000 nits or more, which makes
them ideal for use in bright environments such as outdoor settings
or areas with high ambient light.
2. Enhanced durability: High brightness touch monitor for kiosk are known for their durability and resistance to scratches,
abrasions, and vandalism. The touch screens are made of tempered
glass, which is tough and resistant to impact damage.
3. Customizable: Rugged touch monitor can be customized to meet specific requirements, such as different
screen sizes, aspect ratios, and brightness levels.
Why choose us?
1. Quality products: All our products have passed strict quality
inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’
prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round,
the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at
any time to provide services to customers.
FAQ
1. What package do you provide for the High Brightness Touch
Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
4. Do you give any discount for the High Brightness Touch Monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
