32 Inch PCAP Touch Monitor Open Frame Vandal-Proof For Kiosks
Description of PCAP Touch Monitor
This capacitive touch screen comes with main features as following: 1920*1080 high resolution,
1000:1 contrast ratio, 280 nits brightness with wide viewing angle.
The PCAP touch monitor provides VGA, DVI and HDMI interfaces for
use, USB for touch. It is pure flat designed, sleek and
fashionable. In addition, the touch monitor is IP65 waterproof,
dust proof and anti-vandal.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-CA4P (P/N:KOT-320P-011) |
| Series | OT |
| Display Type | 16:9 Ratio 31.5" TFT-LCD |
| Active Area | 698.4*392.85(mm) |
| Monitor Dimensions (W*H*D) | 783.6*473.5*55.5(mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Response Time (Typ.) | 8ms |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 10.2Kg(1pcs) |
| Package dimensions | 851*153*553(mm)(1pcs in one package) |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W |
| Mount Interface | 1.VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤14ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 705.00*397.85(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according to the specific system
and version.
PCAP touch screen Mechanical Dimensions

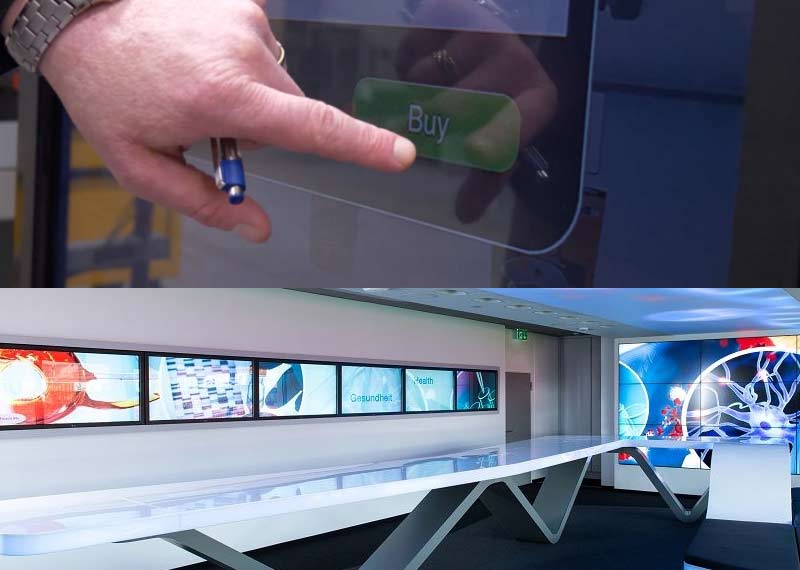

Interactive Touch Screen Solutions Application:
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of PCAP Touch Monitor
1. High sensitivity and accuracy: PCAP touch monitors offer excellent
touch sensitivity, allowing for precise touch input even with a
light touch.
2. Multi-touch support: PCAP touch monitors can support multiple
simultaneous touch inputs, enabling advanced gestures and providing
a more intuitive user experience.
3. Durability: PCAP touch monitors are built with a robust,
chemically-strengthened glass surface that is highly resistant to
scratches, wear, and damage.
4. Optical clarity: The glass surface of a PCAP touch monitor provides
excellent optical clarity, allowing for high-quality image
reproduction.
5. Slim and lightweight design: PCAP touch monitors typically have a
slim and lightweight profile, which makes them easy to integrate
into various systems and installations.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
