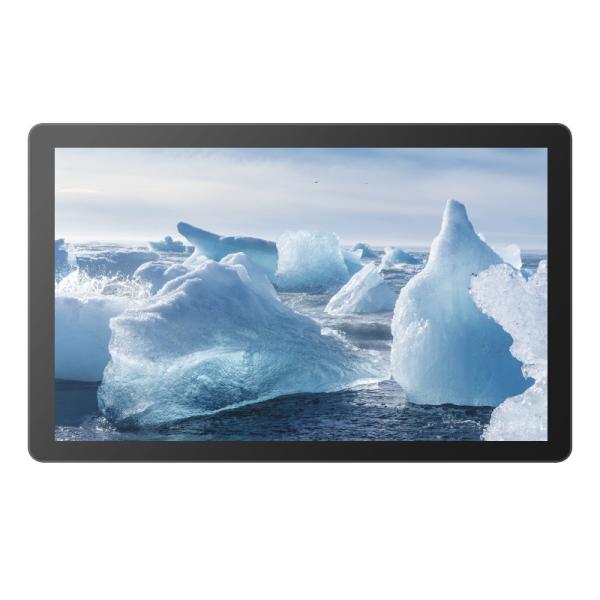

32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080
Description of PCAP Touch Monitor
This 32 inch PCAP touch monitor comes with Projected Capacitive
touch technology with high resolution and wide viewing angle. It is
industrial grade PCAP touch monitor, durable and fashionable. Per
customer’s individual requirements, with over 40 professional
engineers, OEM and ODM services are welcomed. Also, other sizes
(7’’-43’’) can be offered or customized.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-CA4P (P/N:KOT-320P-011) |
| Series | OT |
| Display Type | 16:9 Ratio 31.5" TFT-LCD |
| Active Area | 698.4*392.85(mm) |
| Monitor Dimensions (W*H*D) | 783.6*473.5*55.5(mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 280cd/m2 |
| With Touch Monitor | 238cd/m2 |
| Response Time (Typ.) | 8ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 10.2Kg(1pcs) |
| Package dimensions | 851*153*553(mm)(1pcs in one package) |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W |
| Mount Interface | 1.VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤14ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 705.00*397.85(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according to the specific system
and version.
PCAP Touch Monitor Mechanical Dimensions
Applications
PCAP Touch Monitor are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization.
With over 40 professional R&D engineers, we can offer OEM and
ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with
the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ
1. Can you produce the PCAP touch monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
