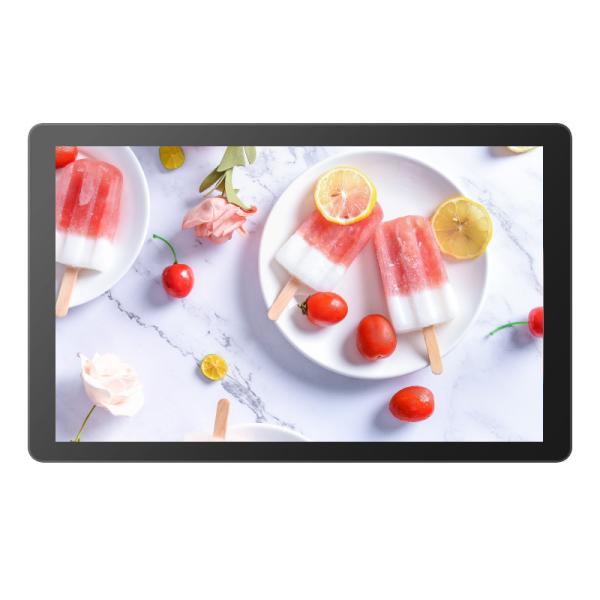

21.5 Inch PCAP Touch Monitor 1920x1080 Resolution Touch Display
Description of PCAP Touch Monitor
This 21.5 inch PCAP touch monitor comes with Projected Capacitive
touch technology with high resolution and wide viewing angle. It is
industrial grade PCAP touch monitor, durable and fashionable.
Moreover, with high resolution and high contrast ratio, the touch
monitor delivers high-quality image. According to customer’s
individual requirements, OEM and ODM services can be offered.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0215U-CA4P (P/N:KOT-215P-015) |
| Series | OT |
| Display Type | 16:9 Ratio 21.5" TFT-LCD |
| Active Area | 476.6*269(mm) |
| Monitor Dimensions (W*H*D) | 512.1*307.3*47(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGADVI |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 5.6Kg(1pcs)/13.4Kg(2pcs in one package) |
| Package dimensions | 605*400*195(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen |
| Touch Type | 21.5" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 479.04*270.51(mm) |
| Thickness | 4.3±0.3(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With
over 40 professional R&D engineers, we can offer OEM and ODM
services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the
certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ
1. Can you produce the PCAP touch monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
