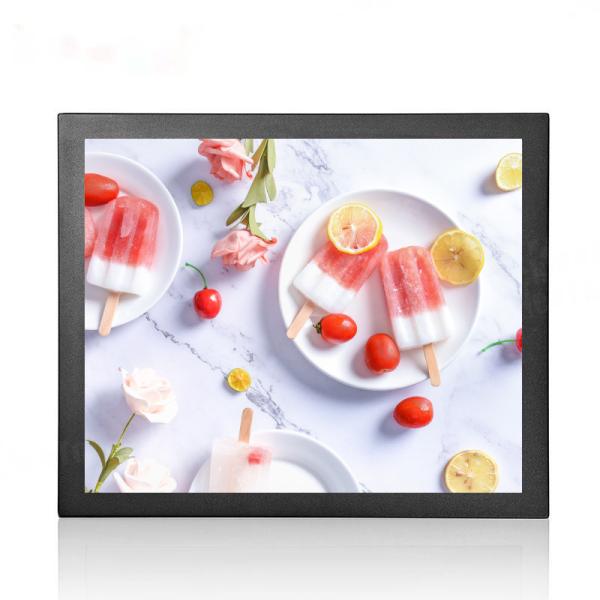

17 inch Infrared Touch Monitor IP65 Waterproof Vandal-roof
Description of IR Touch Monitor
This IR touch monitor has main features as following: 5:4 ratio
display type, 1280*1024 high resolution, 1000:1 high contrast
ratio, IP65 waterproof, dust-proof and anti-vandal along with wide
viewing angle. This industrial grade IR touch monitor comes with
high-quality image. With our professional R&D engineers,
customized services are supported. Moreover, other sizes are
optional (7’’- 43’’).
Infrared Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0170U-IR4W (P/N:KOT-170C-011) |
| Series | OT |
| Display Type | 5:4 Ratio 17" TFT-LCD |
| Active Area | 337.9*270.3(mm) |
| Monitor Dimensions (W*H*D) | 381*313*48.5(mm) |
| Suggested Resolution | 1280*1024 @ 60Hz |
| Support Colors | 16.7M |
| Response Time (Typ.) | 5ms |
| Frequency (H/V) | 37.8～68.4KHz /50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 4.7Kg(1pcs)/10.4Kg(2pcs in one package) |
| Package dimensions | 466*185*403(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 17" Infrared touch screen |
| Touch input | USB |
| Response Time | ≤32ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10 |
| Active Area | 339*271(mm) |
| Thickness | 9±1(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
Infrared Touch Monitor Mechanical Dimensions
Applications
Retail
Gaming
Kiosk
self-service
Finance
Transit
Conference
Education
Healthcare
public service
e-commerce
Hotels
restaurants
Advantages of IR Touch Monitor
1. High durability: IR touch monitors are designed to withstand
heavy usage and can handle millions of touch inputs. They are
resistant to scratches, dust, and water, making them ideal for use
in high-traffic areas.
2. High accuracy: IR touch monitors offer a high level of accuracy
when it comes to touch input detection. This makes them suitable
for applications that require precise touch inputs, such as drawing
and design software.
3. Multi-touch support: IR touch monitors can detect multiple touch
inputs simultaneously, allowing for multi-touch gestures such as
pinch-to-zoom and two-finger scrolling.
4. No pressure required: IR touch monitors do not require any
pressure to detect touch inputs. This makes them easier to use for
people with disabilities or those who have difficulty applying
pressure.
5. Easy calibration: IR touch monitors can be easily calibrated to
ensure accurate touch input detection. This makes them more
user-friendly and reduces the need for maintenance.
6. Compatibility: IR touch monitors are compatible with a wide
range of operating systems, including Windows, Mac, and Linux. This
makes them versatile and suitable for a variety of applications,
including gaming, education, and business.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the IR Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the IR Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
