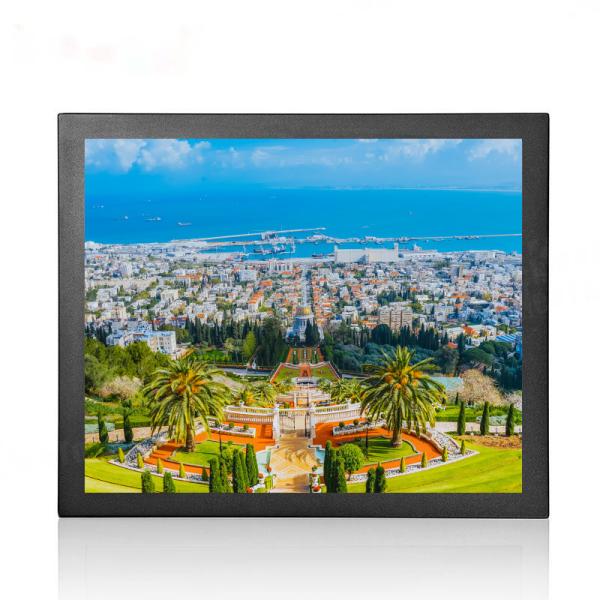

17 Inch IR Touch Monitor 1280x1024 Resolution for Outdoors
Description of IR Touch Monitor
This 17 inch IR touch monitor is highly durable and can withstand
harsh environments. IR touch monitors come with high durability,
high accuracy, and multi-touch support. Besides, IR touch monitors
are compatible with a wide range of operating systems and can be
easily calibrated for accurate touch input detection. In addition,
with our professional R&D engineers, OEM and ODM services can
be offered to meet customer’s individual requirements.
Infrared Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0170U-IR4W (P/N:KOT-170C-011) |
| Series | OT |
| Display Type | 5:4 Ratio 17" TFT-LCD |
| Active Area | 337.9*270.3(mm) |
| Monitor Dimensions (W*H*D) | 381*313*48.5(mm) |
| Suggested Resolution | 1280*1024 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA |
| Frequency (H/V) | 37.8～68.4KHz /50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| Weight(N.W/G.W) | 4.7Kg(1pcs)/10.4Kg(2pcs in one package) |
| Package dimensions | 466*185*403(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen |
| Touch Type | 17" Infrared touch screen |
| Touch input | USB |
| Response Time | ≤32ms |
| Support System | XP,WIN7,WIN8,WIN10 |
| Active Area | 339*271(mm) |
| Thickness | 9±1(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
Infrared Touch Monitor Mechanical Dimensions
Applications
IR Touch Monitor are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality
inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’
prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round,
the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at
any time to provide services to customers.
FAQ:
1. What package do you provide for the IR Touch Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
4. Do you give any discount for the IR Touch Monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
