32 Inch High Brightness Touch Monitor 16:9 Ratio Anti-Vandal
Anti-Glare
Description of High Brightness Touch Monitor

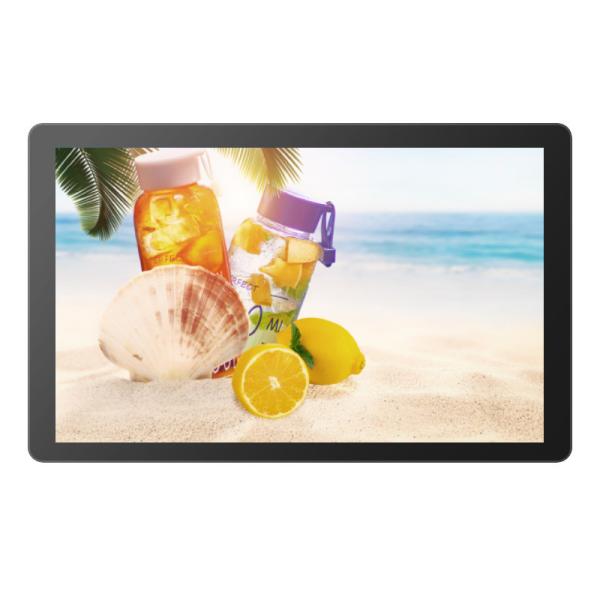

This 32 inch high brightness touch monitor delivers high
durability, accuracy and multi-touch support, which can be used
normally in very harsh environments. The high brightness touch
monitor is a type of display that is designed to produce brighter
and clearer images compared to traditional displays. It is an
anti-glare, dust-proof, vandal-proof and IP65 front frame
waterproof high brightness touch monitor. Also, full sizes
(7’’-43’’) can be offered.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-CA4PH (P/N:KOT-320P-013) |
| Series | OT |
| Display Type | 16:9 Ratio 32" TFT-LCD |
| Active Area | 700.6*395.1 (mm) |
| Monitor Dimensions (W*H*D) | 769*463.5*58.6 (mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1500cd/m2 |
| With Touch Monitor | 1250cd/m2 |
| Response Time (Typ.) | 6ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 4000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 24V/ 5A Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| Mount Interface | 1.VESA 400*400 mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
High Brightness Touch Monitor Mechanical Dimensions
Applications
High Brightness Touch Monitor are widely used in industries such as
retail, gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
