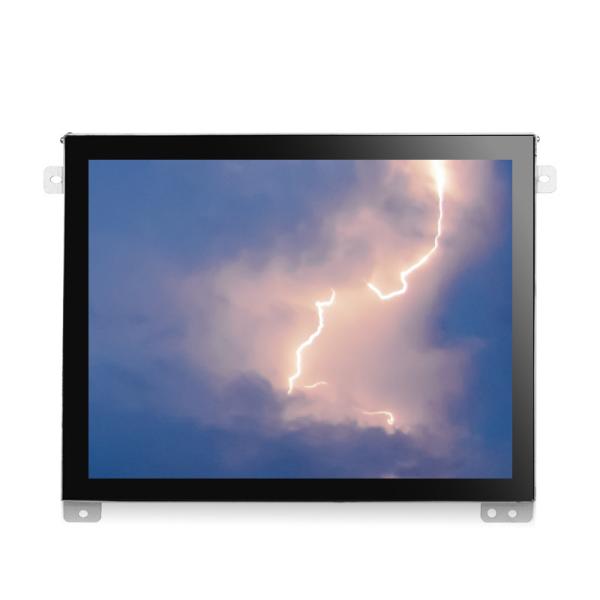

15 Inch PCAP Touch Monitor 1024x768 Resolution For Kiosks
Description of PCAP Touch Monitor
This 15 inch PCAP touch monitor comes with Projected Capacitive
touch technology with high resolution and full viewing angle. It is
industrial grade PCAP touch monitor, durable and fashionable.
According to customer’s individual requirements, with our
professional R&D engineers, customized services are available.
In addition, other sizes (7’’-43’’) can be for your option.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0150UA-CA6PHA(P/N:KOT-150P-015-01) |
| Series | OT |
| Display Type | 4:3 Ratio 15" TFT-LCD |
| Active Area | 304.128×228.096(mm) |
| Monitor Dimensions (W*H*D) | 369.7*292.5*48.1(mm) |
| Suggested Resolution | 1024*768 @ 60Hz |
| Support Colors | 16.7M |
| Response Time (Typ.) | 30ms |
| Video Input | VGA/DVI |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240V AC, 50-60 Hz The DC inner diameter of power adapter:2.1mm |
| Environment | Operating Temp. | -10～50°C |
| Operating RH | 10%～90% |
| Storage Temp. | -20～70°C |
| Storage RH | 10%～90% |
| MTBF | ≥50,000 Hours |
| LED Back Light Life (Typ.) | ≥50,000 Hours |
| Weight(N.W/G.W) | 3.0Kg(1pcs)/7.2Kg(2pcs in one package) |
| Package dimensions | 445*200*395(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen |
| Touch Type | 15" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Resolution ratio | 16384*9600 |
| Hardness | 7H |
| Light Transmittance | ≥85% |
| Anti-vandal test | 500g steel ball drop from 1.3m high test |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 304*228(mm) |
| Thickness | 3.9±0.2(mm) |
| Touch Test | 50,000,000 times |
| Input Voltage | 5V |
| Peep-proof protection film |
| Type | peep-proof protection film |
| The angle range of Anti-peep | Horizontal(left/right): 35°±5° |
| Thickness | 0.58±0.05(mm) |
| Light Transmittance | ≥60%±5% |
PCAP Touch Monitor Mechanical Dimensions
Applications
PCAP Touch Monitor are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization.
With over 40 professional R&D engineers, we can offer OEM and
ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with
the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ:
1. Can you produce the PCAP touch monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
