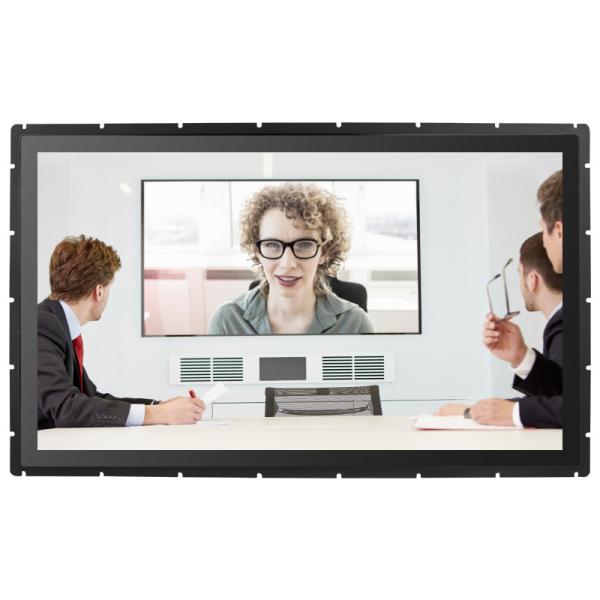

32 Inch High Brightness Touch Monitor 16:9 Ratio Anti-vandal Anti-glare
Description of High Brightness Touch Monitor
This 32 inch high brightness interface touch screen delivers high durability, accuracy and multi-touch support, which
can be used normally in very harsh environments. The high
brightness touch monitor is a type of display that is designed to
produce brighter and clearer images compared to traditional
displays. It is an anti-glare, dust-proof, vandal-proof and IP65
front frame waterproof high brightness touch monitor. Also, full
sizes (7’’-43’’) can be offered.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-CA4PH (P/N:KOT-320P-025) |
| Series | OT |
| Display Type | 16:9 Ratio 32" TFT-LCD |
| Active Area | 698.4*392.85 (mm) |
| Monitor Dimensions (W*H*D) | 780*474*84.2(mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1000cd/m2 , 1500cd/m2 , 2000cd/m2 |
| With Touch Monitor | 850cd/m2 , 1250cd/m2 , 1650cd/m2 |
| Response Time (Typ.) | 6.5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 4000:1(Typ.)/3000:1(Min.) |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 60～73KHz / 47～63Hz |
| Power Supply | Type: External brick Display voltage: DC 24V/ 10A Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| Power Consumption | ≤150W/190W/240W |
| Mount Interface | Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | ≥6H |
| Light Transmittance | ≥83% |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
High Brightness Touch Monitor lcd touchscreen Mechanical Dimensions
Products Applications
High Brightness 10 point multi touch screen are widely used in
industries such as retail, gaming, kiosk, self-service, finance,
transit, conference, education, healthcare, public service,
e-commerce, hotels, restaurants, travel service, payment systems,
museums, exhibitions, smart home, subways, railway stations,
control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality
inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’
prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round,
the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at
any time to provide services to customers.
FAQ:
1. What package do you provide for the display touch screen?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
4. Do you give any discount for the high brightness touch monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
