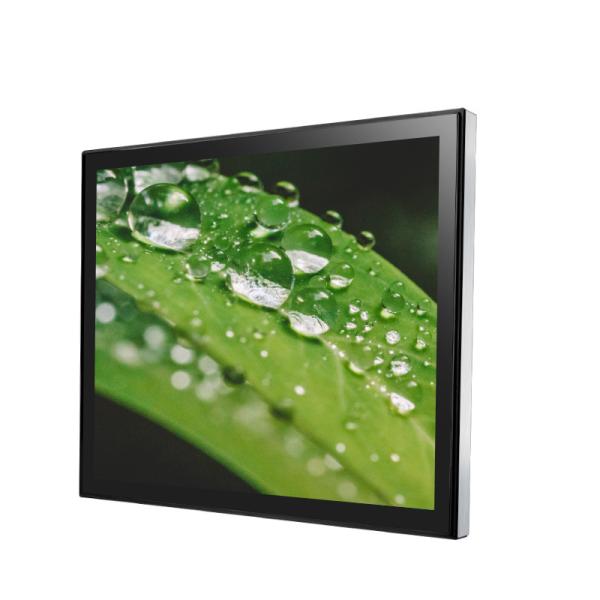

17 Inch PCAP Touch Monitor 1280x1024 Resolution for Kiosks
Description of PCAP Touch Monitor
This PCAP touch monitor delivers below main features: 1280*1024
resolution, 1000:1 contrast ratio, IP65 front frame waterproof,
anti-vandal and dust-proof with wide viewing angle. The PCAP touch
monitor comes with VGA and DVI interfaces for your use, USB for
touch. Also, with professional R&D department, OEM and ODM
services are available. And other sizes can be offered (7’’- 43’’).
Specification of PCAP Touch Monitor
| Complete Machine |
| Model No. | KOT-170P-010(KOT-0170U-CA4P) |
| Series | OT |
| Display Type | 5:4 Ratio 17" TFT-LCD |
| Active Area | 337.9*270.3(mm) |
| Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) |
| Suggested Resolution | 1280*1024 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) |
| Package dimensions | 466*185*403(mm)(2 pcs in one package) |
| Power Consumption | Standby Power: ≤0.82W / Operating Power: ≤7.3W |
| Mount Interface | 1.VESA 75mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 17" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥83% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 340.92*273.34(mm) |
| Thickness | 3.9±0.3(mm) |
| Touch Test | ≥50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
| Peep-proof protection film |
| Type | Peep-proof protection film |
| Guard against peep angle | Horizontal(left/right) 40°±5° |
| Thickness | 570±50(um) |
| Light Transmittance | ≥60%±5% |
Applications
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of PCAP Touch Monitor
1. High sensitivity and accuracy: PCAP touch monitors offer excellent
touch sensitivity, allowing for precise touch input even with a
light touch.
2. Multi-touch support: PCAP touch monitors can support multiple
simultaneous touch inputs, enabling advanced gestures and providing
a more intuitive user experience.
3. Durability: PCAP touch monitors are built with a robust,
chemically-strengthened glass surface that is highly resistant to
scratches, wear, and damage.
4. Optical clarity: The glass surface of a PCAP touch monitor provides
excellent optical clarity, allowing for high-quality image
reproduction.
5. Slim and lightweight design: PCAP touch monitors typically have a
slim and lightweight profile, which makes them easy to integrate
into various systems and installations.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
