17 Inch PCAP Touch Monitor Open Frame for Self-service Kiosks
Description of PCAP Touch Monitor
This 17 inch PCAP touch monitor comes with high durability,
accuracy and multi-touch support, so they can be used in harsh
environments normally. This PCAP touch monitor is vandal-proof ,
dust-proof and IP65 waterproof. VGA and DVI interfaces are provided
for use. Also, other sizes (7’’-43’’) can be optional. And it
supports a variety of operation systems: XP, WIN7, WIN8, WIN10,
Linux, Android.
Specification of PCAP Touch Monitor
| Complete Machine |
| Model No. | KOT-170P-010(KOT-0170U-CA4P) |
| Series | OT |
| Display Type | 5:4 Ratio 17" TFT-LCD |
| Active Area | 337.9*270.3(mm) |

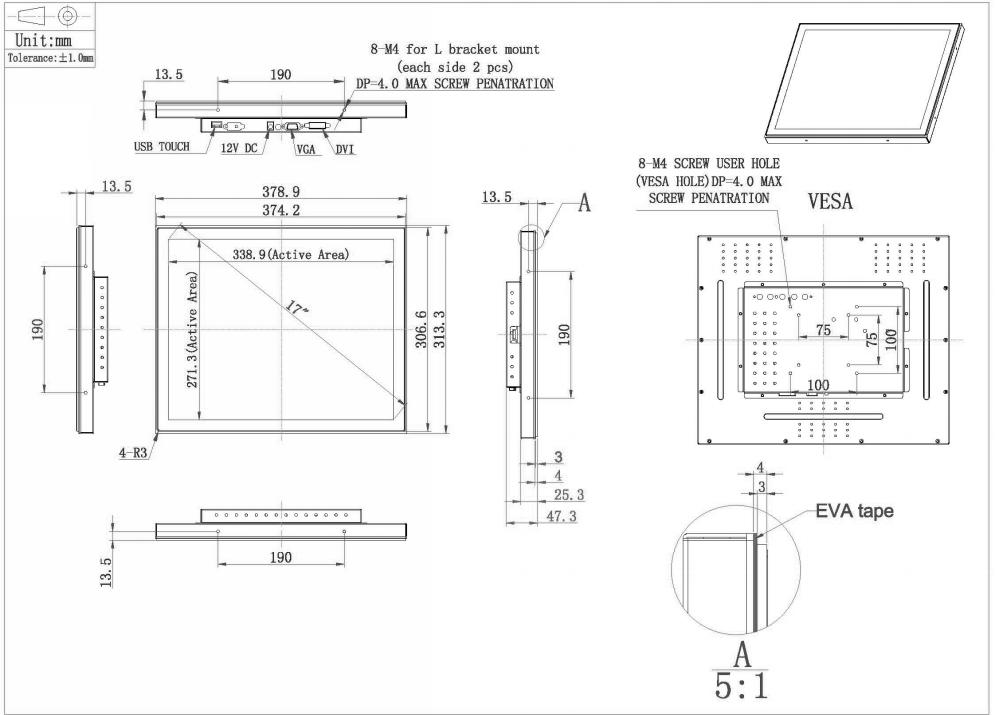

| Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) |
| Suggested Resolution | 1280*1024 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) |
| Power Consumption | Standby Power: ≤0.82W / Operating Power: ≤7.3W |
| Mount Interface | 1.VESA 75mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 17" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥83% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 340.92*273.34(mm) |
| Thickness | 3.9±0.3(mm) |
| Touch Test | ≥50,000,000 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
| Peep-proof protection film |
| Type | Peep-proof protection film |
| Guard against peep angle | Horizontal(left/right) 40°±5° |
| Thickness | 570±50(um) |
| Light Transmittance | ≥60%±5% |
Applications
PCAP Touch Monitor are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Specification of PCAP Touch Monitor
Why choose us?
1. Quality products: All our products have passed strict quality
inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’
prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round,
the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at
any time to provide services to customers.
FAQ:
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
