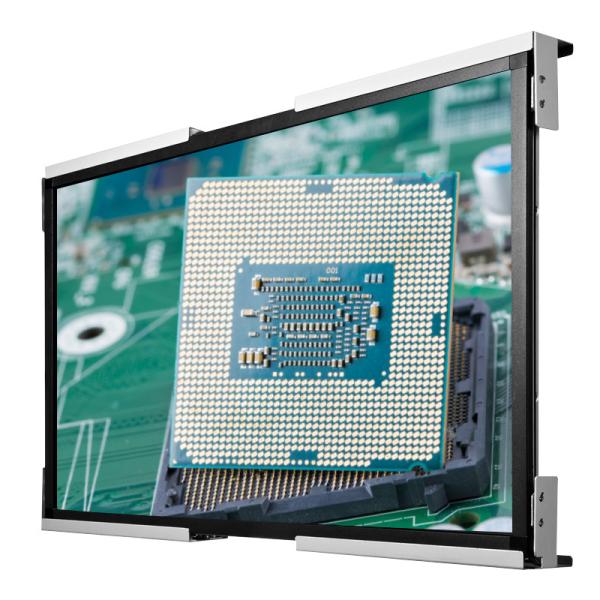

32 inch Infrared Touch Monitor IP65 Waterproof for Kiosks
Description of IR Touch Monitor
This IR touch monitor comes with main features as below: 1920*1080
high resolution, 1000:1 high contrast ratio, 16:9 ratio display
type, IP65 waterproof, dust-proof and anti-vandal with wide viewing
angle. This industrial grade IR touch monitor is high-quality and
durable. With our professional R&D department, OEM and ODM
services are welcomed. In addition, other sizes (7’’- 43’’) can be
offered for your option.
Infrared Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-IR4P (P/N:KOT-320P-010) |
| Series | OT |
| Display Type | 16:9 Ratio 31.5" TFT-LCD |
| Active Area | 698.4*392.85(mm) |
| Monitor Dimensions (W*H*D) | 756*453*75.7(mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 280cd/m2 |
| With Touch Monitor | 252cd/m2 |
| Response Time (Typ.) | 8ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 13Kg(1pcs)/15Kg(1pcs in one package) |
| Package dimensions | 851*153*553(mm)(1pcs in one package) |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 32" Infrared touch screen |
| Touch input | USB |
| Response Time | ≤32ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 702.6*395.8±0.5(mm) |
| Thickness | <5(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
Infrared Touch Monitor Mechanical Dimensions
Applications
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of IR Touch Monitor
1. High durability: IR touch monitors are designed to withstand heavy
usage and can handle millions of touch inputs. They are resistant
to scratches, dust, and water, making them ideal for use in
high-traffic areas.
2. High accuracy: IR touch monitors offer a high level of accuracy
when it comes to touch input detection. This makes them suitable
for applications that require precise touch inputs, such as drawing
and design software.
3. Multi-touch support: IR touch monitors can detect multiple touch
inputs simultaneously, allowing for multi-touch gestures such as
pinch-to-zoom and two-finger scrolling.
4. No pressure required: IR touch monitors do not require any
pressure to detect touch inputs. This makes them easier to use for
people with disabilities or those who have difficulty applying
pressure.
5. Easy calibration: IR touch monitors can be easily calibrated to
ensure accurate touch input detection. This makes them more
user-friendly and reduces the need for maintenance.
6. Compatibility: IR touch monitors are compatible with a wide
range of operating systems, including Windows, Mac, and Linux. This
makes them versatile and suitable for a variety of applications,
including gaming, education, and business.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the IR Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the IR Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
