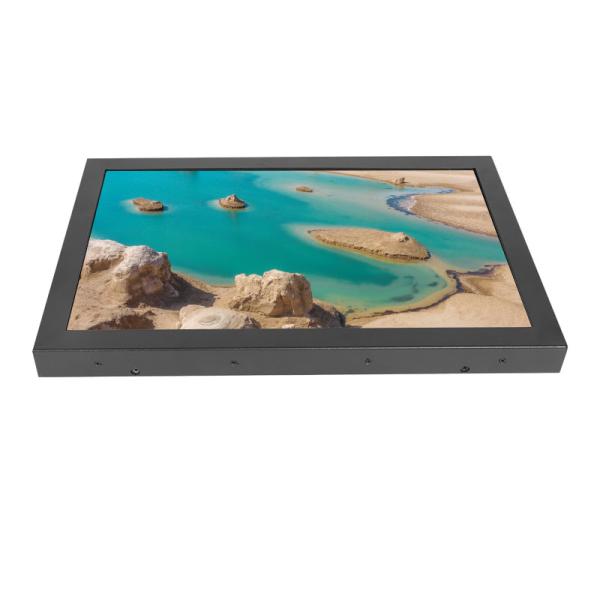

19'' IR Touch Monitor IP65 Waterproof 16:10 Touch Display
Description of IR Touch Monitor
This 19 inch IR touch monitor comes with main specifications as
following: IP65 water-proof, dust-proof and anti-vandal (6mm),
16:10 ratio display type, 1440*900 resolution, 1000:1 high contrast
ratio with wide viewing angle. This industrial grade IR touch
monitor delivers super high-quality image. In addition, it can
support below systems: XP, WIN7, WIN8, WIN10, Linux and Android.
Description of IR Touch Monitor
| Complete Machine |
| Model No. | KOT-190G-022(P/N:KOT-190P-029) |
| Series | Open frame monitor |
| Structure | metal frame, dustproof,open frame,black dustproof metal frame |
| Display Type | 19＂Ratio:16:10,Active matrix TFT-LCD,LED backing |
| Active Area | 16.1＂(408.24mm)×10.0＂(255.15mm) |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Input | H/V Separate Sync. (TTL) |
| Video Input | Mini D-Sub 15-pin VGA |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 50-60 Hz |
| Environment | Operating Temp. | 0~50°C |
| Operating RH | 20%~80% |
| Storage Temp. | -20~60°C |
| Storage RH | 10%~90% |
| MTBF | 30,000 Hour |
| Mounting Type | Standard:VESA 75mm and 100mm Optional:Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Glass Type | 19” anti-vandal(6mm) |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
Infrared Touch Panel Mechanical Dimensions
Application:
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of IR Touch Monitor
1. High durability: IR touch monitors are designed to withstand heavy
usage and can handle millions of touch inputs. They are resistant
to scratches, dust, and water, making them ideal for use in
high-traffic areas.
2. High accuracy: IR touch monitors offer a high level of accuracy
when it comes to touch input detection. This makes them suitable
for applications that require precise touch inputs, such as drawing
and design software.
3. Multi-touch support: IR touch monitors can detect multiple touch
inputs simultaneously, allowing for multi-touch gestures such as
pinch-to-zoom and two-finger scrolling.
4. No pressure required: IR touch monitors do not require any
pressure to detect touch inputs. This makes them easier to use for
people with disabilities or those who have difficulty applying
pressure.
5. Easy calibration: IR touch monitors can be easily calibrated to
ensure accurate touch input detection. This makes them more
user-friendly and reduces the need for maintenance.
6. Compatibility: IR touch monitors are compatible with a wide
range of operating systems, including Windows, Mac, and Linux. This
makes them versatile and suitable for a variety of applications,
including gaming, education, and business.
Service:
1. Warranty: One year .
2. After-sales Service: For the user questions or machine fault,we
will arrange engineer provide remote-control technical support and
maintenance services for you at any time.
3. Product Quality Assurance: Our products had gone through
authoritative evaluation, approves CE, RoHS certification, and
strict test before shipment.
4. After-sales Service Team: The after-sales service center is
equipped with a professional technical service team with abundant
experience in maintenance and support.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the IR Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the IR Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
