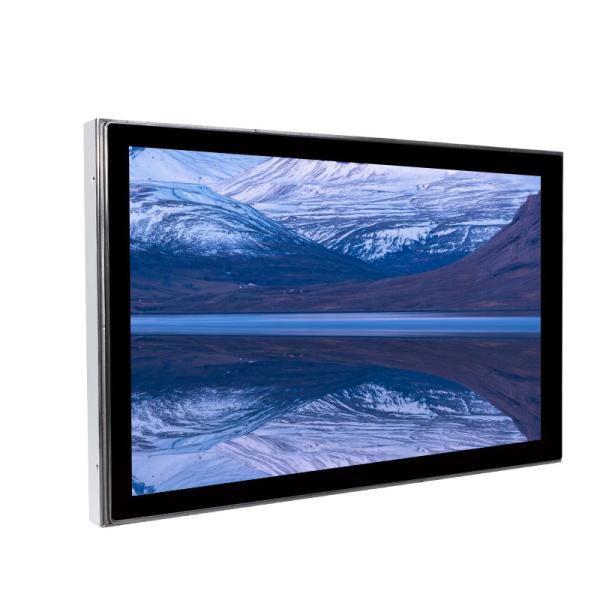

18.5 Inch PCAP Touch Monitor Pure Flat Open Frame Touch Display
Description of PCAP Touch Monitor
This 18.5 inch PCAP touch monitor adopts KeeTouch Projected
Capacitive touch technology with super interactive experience. With
10 points touch, high sensitive and fast response. This PCAP touch
monitor is industrial grade, high-quality, durable and fashionable
with dust-proof, vandal-proof and IP65 waterproof functions.
Besides, other sizes (7’’ - 43’’ ) can be for your option.
Specification of PCAP Touch Monitor
| Complete Machine |
| Model No. | KOT-185P-001(P/N:KOT-0185U-CA4P) |
| Series | OT |
| Display Type | 16:9 Ratio 18.5" TFT-LCD |
| Active Area | 409.8*230.4(mm) |
| Monitor Dimensions (W*H*D) | 449.4*270*46(mm) |
| Suggested Resolution | 1920*1080@ 60Hz |
| Support Colors | 16.7M |
Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 37.8～68.4KHz / 50～76Hz |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 3.64Kg(1pcs)/8.93Kg(2pcs in one package) |
| Package dimensions | 525*190*385(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤25W |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 18.5" Riot capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 410.8*231.4(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
Specification of PCAP Touch Monitor
Application:
PCAP Touch Monitor are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can
offer OEM and ODM services to meet customer’s individual
requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the
certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ:
1. Can you produce the PCAP touch monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
