Industrial Open Frame LCD Monitors 15.6 Inch PCAP Touch Screen
Monitor For Kiosk
PCAP Touch Monitor Description:
Our PCAP touch monitors are designed with slim pure flat structure,
which is easily installed into self-service kiosk and looks modern
sleek. When working in harsh environment, they are sealed against
dirt, dust and liquid. It’s optional for VGA, HDMI for computer
connecting and USB for touch.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0156U-CA4P (P/N:KOT-156P-006) |
| Series | OT |
| Display Type | 16:9 Ratio 15.6" TFT-LCD |
| Active Area | 344.16*193.59(mm) |
| Monitor Dimensions (W*H*D) | 382*234*46.1(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.2M |
| Brightness (Typ.) | Pure LCD Panel | 400cd/m2 |
| With Touch Monitor | 340cd/m2 |
| Response Time (Typ.) | 8ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70°/70° |
| Vertical(up/down) | 60°/60° |
| Contrast Ratio (Typ.) | 500:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 37.9～80KHz / 60～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -10～70°C |
| Operating RH | 8%～95% |
| Storage Temp. | -20～70°C |
| Storage RH | 5%～95% |
| MTBF | ≥50,000 Hours |
| LED Back Light Life (Typ.) | ≥50,000 Hours |
| Weight(N.W/G.W) | 2.7Kg(1pcs)/6.5Kg(2pcs in one package) |
| Package dimensions | 468*150*323(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 15.6" Riot Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 7H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 345.2*194.5(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
PCAP Touch Monitor Mechanical Dimensions
1) Rigorous Reliability Testing
Products you received are inspected by rigorous reliability
testing, such as burn-in test, anti-vibration test, high low
temperature test to ensure quality.
2) ODM, OEM Service
We have more than 50+ R&D skilled engineers to make your
requirement reality.
3) Local Service
Established branches office all over the world, such as Germany,
Russia, Brazil, india, etc, to provide local service.

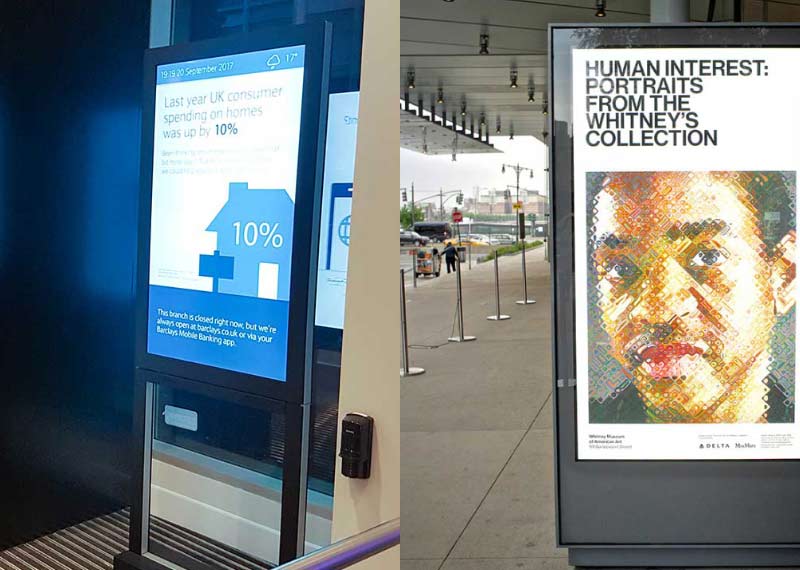

Applications
Our PCAP touch Monitors are well-suited in industries such as retail, gaming, kiosk, self-service, finance,
transit, conference, education, healthcare, public service,
e-commerce, hotels, restaurants, travel service, payment systems,
museums, exhibitions, smart home, subways, railway stations,
control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. What are the shipping ways for the PCAP touch monitors?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
5. What package do you provide?
Our package usually is carton.
