Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen
Vending Machine
PCAP Touch Monitor Description
This PCAP touch monitor is IP65 front panel waterproof and delivers
excellent image quality, 10 points smooth touch experience. We can
provide you with a variety of VGA, DVI, HDMI, USB cables and power
adapter for monitors, also set up operating systems: XP, WIN7,
WIN8, WIN10, Linux, Android to be compatible with your device.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0215U-CA4P (P/N:KOT-215P-011) |
| Series | OT |
| Display Type | 16:9 Ratio 21.5" TFT-LCD |
| Active Area | 478*270(mm) |
| Monitor Dimensions (W*H*D) | 516*311*40(mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 5.6Kg(1pcs)/7.7Kg(1pcs in one package) |
| Package dimensions | 610*410*145(mm)(1pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 21.5" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 477.6*269(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
PCAP Touch Monitor Mechanical Dimensions

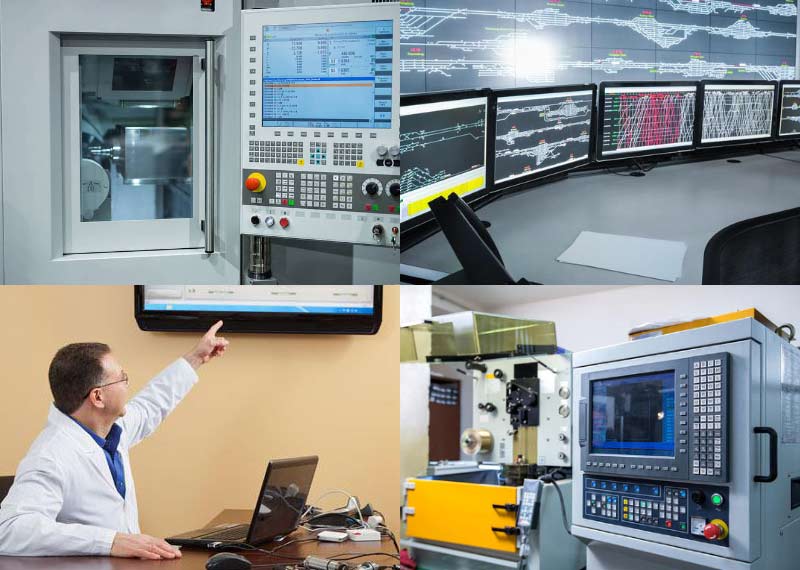

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
2. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
3. Can you produce the PCAP touch monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also
good service will be offered.
