10.1 Inch High Brightness Touch Monitor with IP65 grade Surface
Waterproof
High Brightness Touch Monitor Main Features
- Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
- IP65 grade water-proof,dust-proof for front panel.
- Aluminum alloy shell, good mechanical properties,better performance
of heat dissipation.
- Adopt industrial control HD LCD screen +LED backlight
screen,highlight picture.
- Compatible with various industrial systems/application.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0101U-CA4PHB (P/N:KOT-101P-001) |
| Series | OT |
| Display Type | 16:10 Ratio 10.1" TFT-LCD,LED backlight |
| Active Area | 216.96*135.6(mm) |
| Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) |
| Suggested Resolution | 1280*800 WXGA |
| Support Colors | 16.2M |
Brightness (Typ.) | Pure LCD Panel | ≥1200cd/m2 |
| With Touch Monitor | ≥1020cd/m2 |
| Response Time (Typ.) | 16ms |
Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 85°/85° |
| Contrast Ratio (Typ.) | 800:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Heat Dissipation | Fan Cooling |
Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
Environment | Operating Temp. | -20～65°C |
| Operating RH | 60℃, RH 90% |
| Storage Temp. | -25～70°C |
| Storage RH | 10%～90% |
| MTBF | ≥ 50,000 Hours |
| LED Back Light Life (Typ.) | ≥ 50,000 Hours |
| Power Consumption | Standby Power: ≤15W / Operating Power: ≤18W |
| Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount |
| Weight(N.W/G.W) | 2.1Kg(1pcs) /7.5Kg(2pcs in one package) |
| Package dimensions | 415*255*295mm(2pcs in one package) |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 10.1" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >85% |
| Support System | Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Active Area | 219.2*137.8(mm) |
| Thickness | 3.75±0.2mm |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.

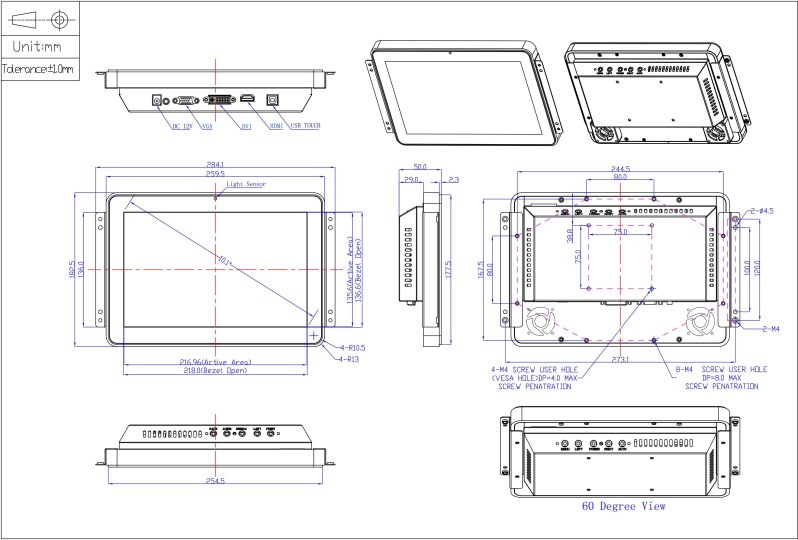

High Brightness Touch Monitor Mechanical Dimensions
Applications
1.Financial Organizations: Banks, negotiable securities, funds,
insurance companies, pawnshops;
2.Non-profit Organizations: Telecommunications, post offices,
hospital, schools;
3.Real Estate Property: Apartments, villas, offices, commercial
buildings, model rooms, property brokers;
4.Entertainments: Movie theaters, fitness halls, clubs, massage
rooms, bars, cafes, Internet bars, beauty shops, golf course.
