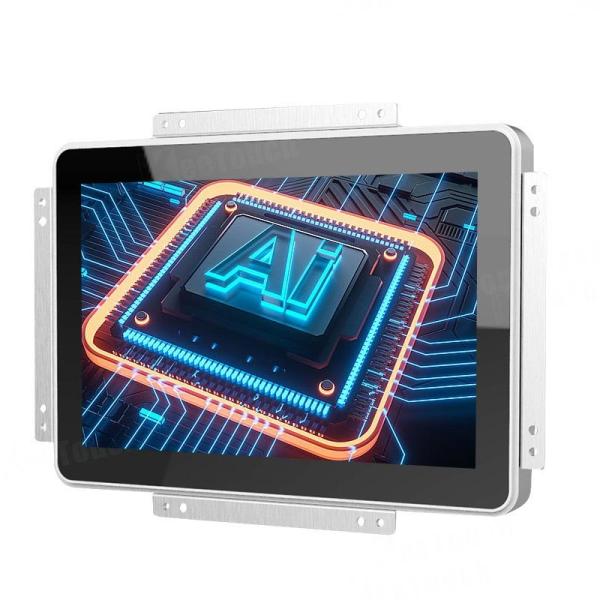

10.1 inch High Brightness Monitor with capacitive touch screens for
outdoor
High Brightness Touch Monitor Main Features
- Anti-glare, anti-vandal high brightness touch monitor
- PCAP multi touch screen, high quality touch experience
- High brightness:1000 - 2000 cd/m2 optional
- Pure flat designed high brightness touch monitor, IP65 frontside
waterproof
- Interface: DVI + VGA interfaces,
- Touch Input: USB
- Support OS: XP,WIN7,WIN8,WIN10
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0101U-CA4PHB (P/N:KOT-101P-001) |
| Series | OT |
| Display Type | 16:10 Ratio 10.1" TFT-LCD,LED backlight |
| Active Area | 216.96*135.6(mm) |
| Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) |
| Suggested Resolution | 1280*800 WXGA |
| Support Colors | 16.2M |
Brightness (Typ.) | Pure LCD Panel | ≥1200cd/m2 |
| With Touch Monitor | ≥1020cd/m2 |
| Response Time (Typ.) | 16ms |
Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 85°/85° |
| Contrast Ratio (Typ.) | 800:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Heat Dissipation | Fan Cooling |
Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
Environment | Operating Temp. | -20～65°C |
| Operating RH | 60℃, RH 90% |
| Storage Temp. | -25～70°C |
| Storage RH | 10%～90% |
| MTBF | ≥ 50,000 Hours |
| LED Back Light Life (Typ.) | ≥ 50,000 Hours |
| Power Consumption | Standby Power: ≤15W / Operating Power: ≤18W |
| Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount |
| Weight(N.W/G.W) | 2.1Kg(1pcs) /7.5Kg(2pcs in one package) |
| Package dimensions | 415*255*295mm(2pcs in one package) |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 10.1" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >85% |
| Support System | Multi-Touch : WIN7,WIN8,WIN10 Si ngle Touch : XP |
| Active Area | 219.2*137.8(mm) |
| Thickness | 3.75±0.2mm |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
High Brightness Touch Monitor Mechanical Dimensions
Applications
1. Automatic system:intelligent self-service terminal, intelligent
retail terminal, O2O smart device, robot equipment,Industrial
control equipment,Advertising kiosks,All-in-one conference
machine,etc.
2. Public Places: subway, airports, stations, gas stations, toll
stations, bookstores, parks, exhibition halls, stadiums,
museums,convention centers, ticket agencies, HR market, lottery
centers;
3. Business Organizations: supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ?
Our minimum order quantity is 1pc only.
3. What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are
offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
