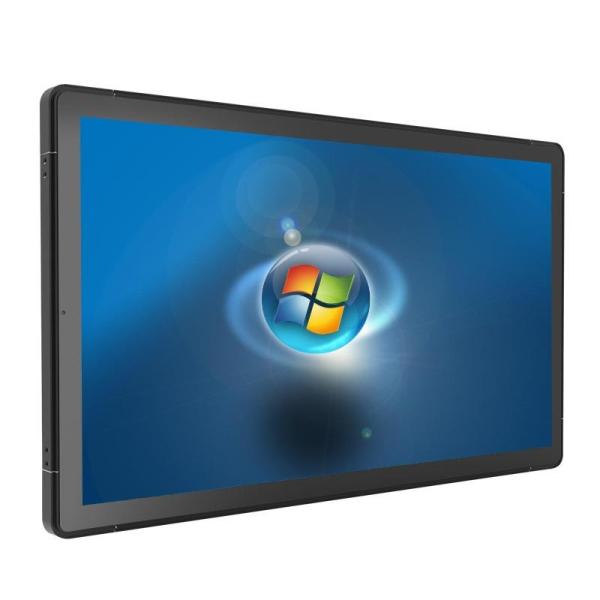

27" Inch Open Frame High Brightness PCAP Touch Monitor For Self
Service Kiosks
High Brightness Touch Monitor Main Features
Multi-points PCAP touch panel, high sensitive and fast-response
Anti-glare,vandal-proof and dust-proof, IP65 surface waterproof
function
High brightness sunlight readable,1000 - 2000 nits optional
Support Resistive touch, SAW touch , IR touch, Capacitive touch.
Compatible with various industrial systems/application.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0270U-CA4PH (P/N:KOT-270P-005-01) |
| Series | OT |
| Display Type | 16:9 Ratio 27" TFT-LCD |
| Active Area | 597.6*336.15(mm) |
| Monitor Dimensions (W*H*D) | 655.9*394.4*87(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1000cd/m2 |
| With Touch Monitor | 850cd/m2 |
| Response Time (Typ.) | 12ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 3000:1 |
| Video Input | VGA/HDMI |
| Frequency (H/V) | 30～80KHz / 50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 24V 7A ±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| Power Consumption | Standby Power: 2.5W / Operating Power: ≤120W |
| Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
| Weight(N.W/G.W) | 12.5Kg/17.35Kg |
| Package dimensions | 80.5*23.3*55.3cm |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Touch screen Type | 27”Projected Capacitive Touchscreen |
| Touch System Interface | USB |
| Support System | 10 points in win7,Win xp 1 point |
| Regular Warranty | 1 year |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
High Brightness Touch Monitor Mechanical Dimensions
Applications
1. Public Places: subway, airports, stations, gas stations, toll
stations, bookstores, parks, exhibition halls, stadiums,
museums,convention centers, ticket agencies, HR market, lottery
centers;
2. Business Organizations: supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy.
3. Entertainments: Movie theaters, fitness halls, country clubs,
clubs, massage rooms, bars, cafes, Internet bars, beauty shops,
golf course.
