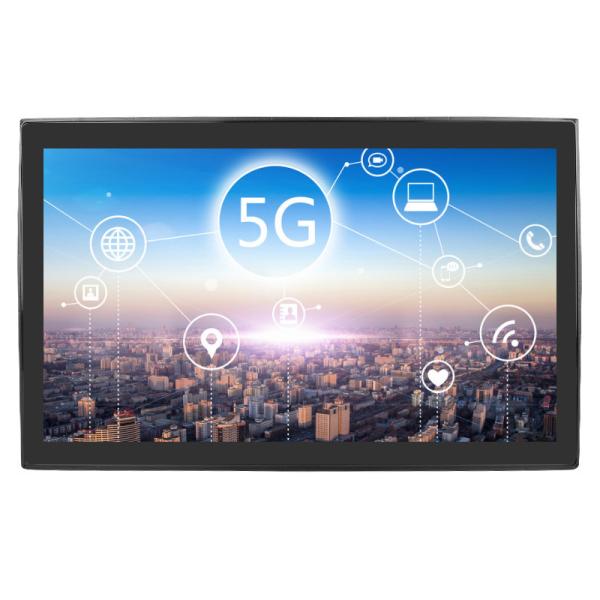

15.6 Inch PCAP Touch Monitor Vandal - Proof Pure Flat 1920x1080
PCAP Touch Monitor Main Features
PCAP multi-touch panel, accurate touch and fast response
Vandal-proof and dust-proof industrial grade PCAP touch monitor
Pure flat designed, sleek and fashionable, IP65 surface waterproof
High resolution PCAP touch monitor, with high-quality image
VGA + DVI interfaces, USB for touch
Multiple mounting options include VESA mount, horizontal vertical
brackets mount
Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
Other sizes can be offered or customized (7’’- 43’’)
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0156U-CA4P (P/N:KOT-156P-006) |
| Series | OT |
| Display Type | 16:9 Ratio 15.6" TFT-LCD |
| Active Area | 344.16*193.59(mm) |
| Monitor Dimensions (W*H*D) | 382*234*46.1(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.2M |
| Brightness (Typ.) | Pure LCD Panel | 400cd/m2 |
| With Touch Monitor | 340cd/m2 |
| Response Time (Typ.) | 8ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70°/70° |
| Vertical(up/down) | 60°/60° |
| Contrast Ratio (Typ.) | 500:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 37.9～80KHz / 60～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -10～70°C |
| Operating RH | 8%～95% |
| Storage Temp. | -20～70°C |
| Storage RH | 5%～95% |
| MTBF | ≥50,000 Hours |
| LED Back Light Life (Typ.) | ≥50,000 Hours |
| Weight(N.W/G.W) | 2.7Kg(1pcs)/6.5Kg(2pcs in one package) |
| Package dimensions | 468*150*323(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 15.6" Riot Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 7H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 345.2*194.5(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
