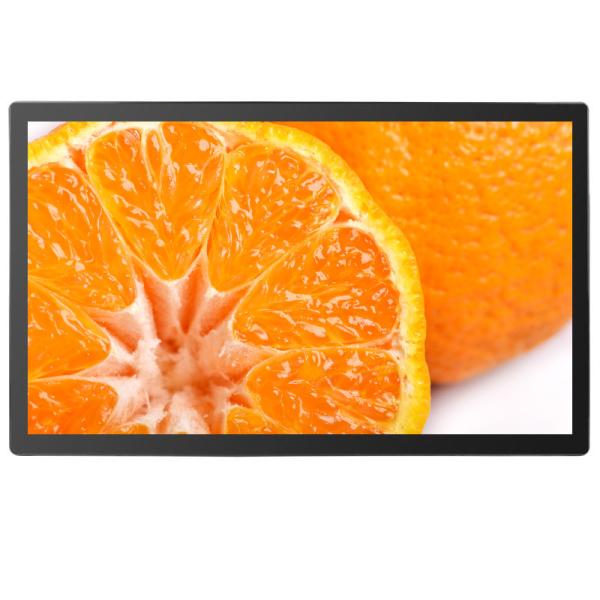

PCAP Touch Screen Monitors 23.8 Inch Open Frame Industrial LCD
Display
PCAP Touch Monitor Description
Anti-vandal and waterproof PCAP touch monitors are designed with
flat assembly, which is easy to install with VESA mount, brackets
mount and embedded installation. It is compatible with operating
systems XP, WIN7, WIN8, WIN10, Linux and Android, also support VGA,
HDMI, DVI video input and USB for touch.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0238U-CA4P (P/N:KOT-238P-002) |
| Series | OT |
| Display Type | 16:9 Ratio 23.8" TFT-LCD |
| Active Area | 528*297.5(mm) |
| Monitor Dimensions (W*H*D) | 573.3*345.1*43(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 215cd/m2 |
| Response Time (Typ.) | 14ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/HDMI |
| Frequency (H/V) | 30～82KHz / 50～75Hz |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| Power Consumption | Standby Power: 2W / Operating Power: ≤27W |
| Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 23.8" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 7H |
| Light Transmittance | ≥87% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Glass Thickness | 3(mm) |
| Touch Test | ≥50,000,000 times |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
2. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
3. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
4. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
5. Can you produce the PCAP Touch Monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
