32 Inch Touch Screen Monitors LED Light Pot O Gold Gaming Touch
Panel Monitors
PCAP Touch Monitor Description
This Curved PCAP touch monitor is designed with LED strips and uses
industrial LCD panel with FHD 1920x1080, ultrafast refresh rate,
wide viewing angel, rich colors, which can deliver an immersive
experience. They can be connected by VGA, HDMI, DVI interfaces, USB
for touch and also support XP, WIN7, WIN8, WIN10, Linux, Android
operating systems.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-CA5P (P/N:KOT-320P-026) |
| Series | OT |
| Display Type | 16:9 Ratio 32" TFT-LCD |
| Active Area | 698.4 x 392.85(mm) |
| Monitor Dimensions (W*H*D) | 768.4*456*109.6(mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 213cd/m2 |
| Response Time (Typ.) | 21ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89°(Typ.)/80°/80°(Min.) |
| Vertical(up/down) | 89°/89°(Typ.)/80°/80°(Min.) |
| Contrast Ratio (Typ.) | 2100:1 (Min.) /3000:1(Typ.) |
| Video Input | VGADVI |
| Frequency (H/V) | 54.15～84.38KHz / 49～72Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W |
| Mount Interface | VESA 200mm |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤14ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 692.7*392(mm) |
| Thickness | 3.8±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
PCAP Touch Monitor Mechanical Dimensions

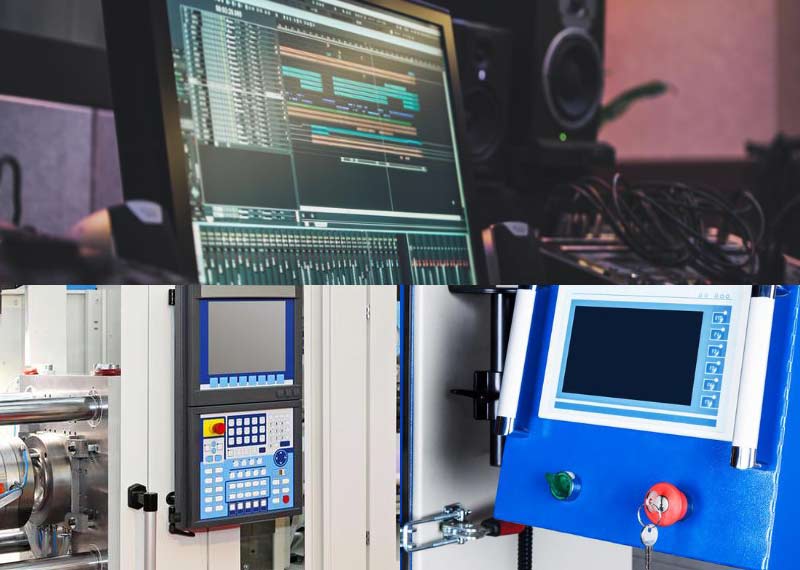

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
