15 Inch PCAP All-In One Touch Computer 5:4 Ratio Anti-Vandal
Industrial Touchscreen Computer Main Features
- With PCAP touch technology, up to 10 points touch
- High-quality anti-vandal industrial touchscreen computer with high
resolution
- Freescale i.HX6Q (4 Core) CPU, other configurations can be
customized
- A series of I/O interfaces support various third-party peripherals
- Multiple mounting options include VESA mount, horizontal vertical
brackets mount
- Support system: Windows and Android optional
- Other sizes can be offered (7’’- 43’’)
Industrial Touchscreen Computer Specifications
| Complete Machine |
| Model No. | KOT-0150U-CA4P (P/N:KTP-150M-002-02) |
| Series | All-in-One Touch Computer |
| Display Type | 5:4 Ratio 15" TFT-LCD |
| Active Area | 304.1*228.1 (mm) |
| Monitor Dimensions (W*H*D) | 360.5*292*72 (mm) |
| Suggested Resolution | 1024*768 @ 60Hz |
| Support Colors | 16.2M |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 255cd/m2 |
| Response Time (Typ.) | 25ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 70°/70° |
| Contrast Ratio (Typ.) | 700:1 |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| Computer parameters | CPU | Freescale i.HX6Q(4 Core) |
| RAM | Onboard memory: Support DDR3, 2GB(default); Onboard storage:
8GB(default) EMMC Flash |
| Interface | 4*USB, 1*HDMI, 5* serial port, LAN*1 |
| LVDS | LVDS*1 (dual channel),support 24Bit |
| HDMI | Support HDMI2.0, Max Resolution: 1080p@120Hz |
| LAN | RJ45(10/100/1000Mbps) |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 15" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤8ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | Android/windows(optional) |
| Active Area | 305.1*229.1 (mm) |
| Thickness | 4.3±0.2 (mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
The Industrial Touchscreen Computer Mechanical Dimensions

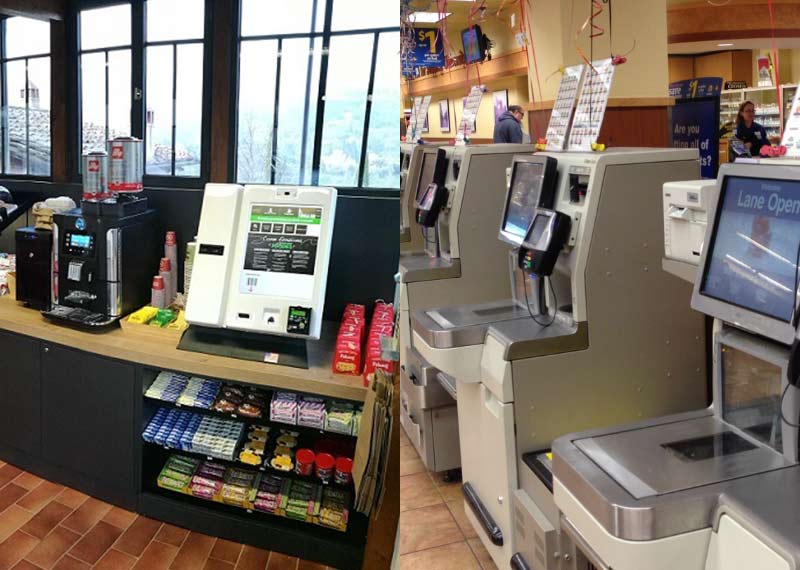

Applications
Widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the industrial touchscreen computer?
Our minimum order quantity is 1pc only.
3. What is your warranty period for industrial touchscreen
computer?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the product according to the customer's
requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for the industrial touchscreen
computer?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
