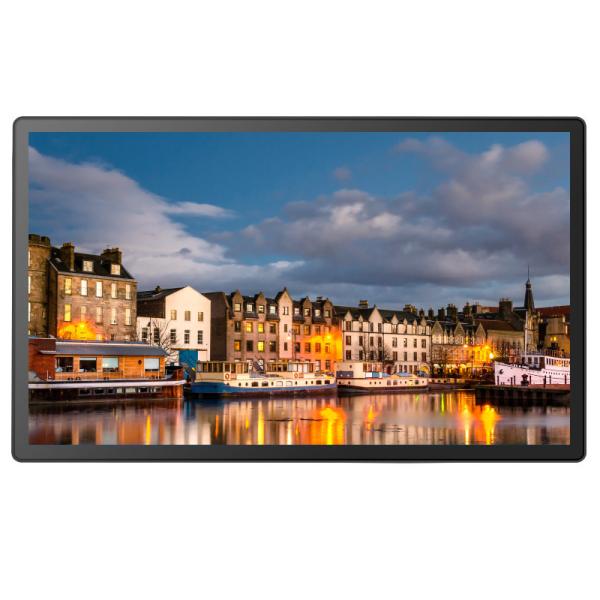

43 Inch Capacitive Waterproof High BrightnessTouch Screen Monitor
For Gaming Machine
High Brightness Touch Monitor Main Features
1. PCAP multi-touch screen, up to 10 points touch
2. 1250 nits high brightness, sunlight readable, 1000 -2000 nits
optional
3. Pure flat designed, attractive and fashionable high brightness
touch monitor
4. Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
5. Aluminum alloy shell,good mechanical properties,better
performance of heat dissipation.
6. Adopt industrial control HD LCD screen
7. LED backlight screen,highlight picture,perfect color.
8. Support Resistive touch, SAW touch , IR touch, Capacitive touch.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0215U-CA4PH (P/N:KOT-215P-028) |
| Series | OT |
| Display Type | 16:9 Ratio 21.5" TFT-LCD |
| Active Area | 477.6*269.6(mm) |
| Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1500cd/m2 |
| With Touch Monitor | 1245cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 40～90KHz / 50～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Touch screen Type | 21.5”Projected Capacitive Touchscreen, |
| Touch System Interface | USB(or Serial port,one point) |
| Support System | 10 points in win7 |
| Regular Warranty | 1 year |
NOTE :
① The display SPEC. are adjusted according to the selected LCD
screen and touch screen
② The support system is adjusted according the specific system and
version.
High Brightness Touch Monitor Mechanical Dimensions
Applications
1. Automatic system:intelligent self-service terminal, intelligent
retail terminal, O2O smart device, robot equipment,Industrial
control equipment,Advertising kiosks,All-in-one conference
machine,etc.
2. Business Organizations: supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy.
3. Non-profit Organizations: Telecommunications, post offices,
hospital, schools;
4. Entertainments: Movie theaters, fitness halls, country clubs,
clubs, massage rooms, bars, cafes, Internet bars, beauty shops,
golf course.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model
products.
6. Do you give any discount?
We will do utmost to support you with the competitive price, also
good service will be offered.
