15.6 Inch Industrial Touchscreen Computer , 1920x1080 Fanless Touch Screen PC

Product Categories

Keetouch Co., Ltd.

Contact Now

Name: 156 Inch Industrial Touchscreen Computer 1920x1080 Fanless Touch Screen PC
Brand: KeeTouch
Price: 1 USD

Add to Cart

15.6 Inch Industrial Touchscreen Computer Fanless Touch Screen PC

Industrial Touchscreen Computer Main Features

Adopt 16:9 full HD 1920x1080 TFT LCD panel, multi-touch PCAP technology, sensitive and accurate
High-resolution industrial-grade touchscreen computer with a broad viewing angle
The industrial touchscreen computer's standard brightness is 340nits, high brightness version can be an option
Operating systems like Windows, Linux, and Raspberry Pi are workable on this panel PC
Certified with global certificates such as UL, CE, ROHS, FCC, TUV

Industrial Touchscreen Computer Specifications

KOT-0156U-CA4P(P/N:KTP-156M-003)
Display	Screen	15.6 inch
	Resolution	1920 x 3(RGB) x 1080
	According to the proportion	16:09
	Brightness	340nit(Typ.)/265.6nit(Min.)
	Contrast	500:1(Typ.)/400:1(Min.)
	Response Time	8 (Typ.)/ 16 (Max.)
	View angle	70/70/60/60(Typ.)/60/60/45/50(Min.)(CR=10)
	Active Display Area	344.16(H) x 193.59(V)mm

PC Configuration	CPU	Intel® Celeron® J1900, clock speed 2G, Quad-core, TDP 10W
	Memory	Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
	Storage	1 * SATA2.0 + 1 * mSATA [2]
	BIOS	AMI UEFI BIOS

Touch Screen	Touch Method	Capacitive Touch
	Touch Surface Hardness	6H
	Touch Screen Transparency	85%

I/O interface	1-VGA, 4-USB,2-RJ45,3-DB9, 1-DC 12V,1-Audio/Mic, 1-power

Other parameters	Cooling System	Fanless
	Enclosure Material	Metal
	Weight(N.W/G.W)	3.9Kg(1pcs) / 9.3Kg(2pcs in one package)
	Package dimensions	545150400(mm)(2pcs in one package)
	Waterproof Rating	IP65 ( Only for the front panel )
	Power Consumption	≤30W
	Working Temperature	0 ~ 50 °C
	Storage Temperature	-20~60°C
	Storage Humidity	20%~80%
	Storage Humidity	10%~90%
	Product Size	38223456 (mm)
	Warranty	1 year
	Certification	CCC, ETL, FCC, CE, CB, RoHS

The Industrial Touchscreen Computer Mechanical Dimensions

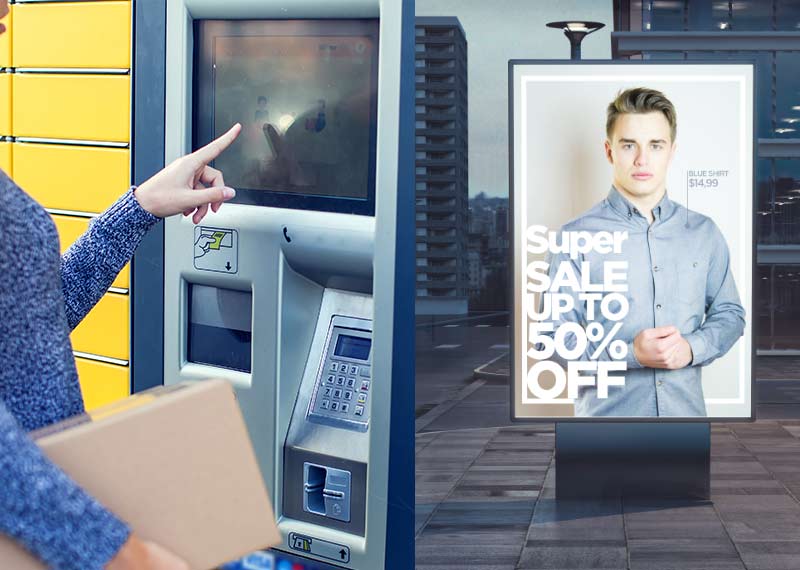

Applications

Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Business Organizations: supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, and pharmacies.
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainment: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, and golf courses.

FAQ

Q: Are you a manufacturer?

A: Yes, KeeTouch is a 16-year professional manufacturer of touch products. Our factory is located in Shenzhen, China.

Q: What’s your MOQ?

A: Our minimum order quantity is 1pc only.

Q: Do you plan to develop worldwide distributors or agents?

A: Of course. Now we have branches/agents in Germany, Brazil, and India. Welcome to talk more about the distributors' and agents' business.

Q: What is your warranty period?
A: Our regular warranty is 12 months for all the products, with a 2-3 years Warranty (optional).

Q: What is your delivery time?
A: 3-5 work days for inventory orders, 7-15 business days for bulk production.
