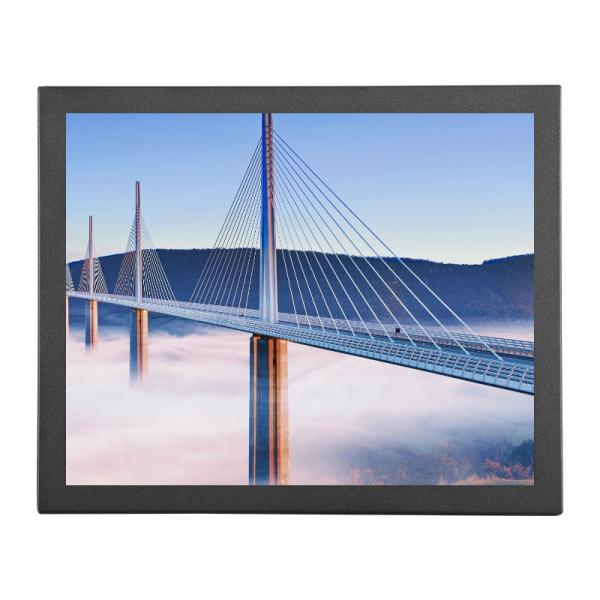

17 Inch SAW Touch Monitor IP65 Surface Waterproof For ATM Kiosks
SAW Touch Monitor Main Features:
KeeTouch SAW touch technology, accurate touch, fast response
Industrial grade SAW touch monitor with water-proof function
High quality panel with high resolution, contrast ratio and broad
viewing angle
VGA+DVI interfaces, USB/RS232 for touch
Support system: XP,WIN7,WIN8,WIN10
Multiple mounting options including horizontal bracket-mount,
vertical bracket
Other sizes are available (7’’- 55’’)
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0170US-SA6BW (P/N:KOT-170W-003) |
| Series | OT |
| Display Type | 5:4Ratio 17＂Active matrix TFT-LCD |
| Active Area | 338*270 (mm) |
| Monitor Dimensions (W*H*D) | 391*323*54.5 (mm) |
| Suggested Resolution | 1280*1024 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With SAW glass sensor | 225cd/m2 |
| Response Time (Typ.) | 30ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 160°(75°/85°) |
| Vertical(up/down) | 150°(70°/80°) |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Package dimensions | 466*185*403(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 17" Surface acoustic wave touch screen |
| Touch input | USB/RS232 |
| Response Time | ≤8ms(USB) / ≤12ms(RS232) |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10 |
| Touch Test | ≥50,000,000 times |
SAW Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
