22 Inch SAW Touch Monitor With High Resolution TFT LCD Screen For
Gaming Machine
SAW Touch Monitor Description:
KeeTouch SAW touch monitor delivers superior image clarity,
resolution, light transmission, and reliability because it utilizes
clear glass that continues to work even if scratched. The stable,
drift-free operation of Surface Acoustic Wave touchscreen
technology provides an accurate touch response measured on three
axes using a finger, gloved hand, or passive stylus. Customized
service is available from 7" to 43".
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0220US-SA6BP (P/N:KOT-220P-014) |
| Series | OT |
| Display Type | 16:10 Ratio 22" TFT-LCD |
| Active Area | 376.32*301.06 (mm) |
| Monitor Dimensions (W*H*D) | 473.8 mm×296.1 mm |
| Suggested Resolution | 1680*1050@ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Video Input connector | Mini D-Sub 15-pin VGA and DVI-D |
| Frequency (H/V) | 30 -80KHz/ 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 7.4Kg(1pcs)/20.8Kg(2pcs in one package) |
| Package dimensions | 635*190*435(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen Type | 22" Surface acoustic wave touch screen(6mm) |
| Touch input | USB/RS232 |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |

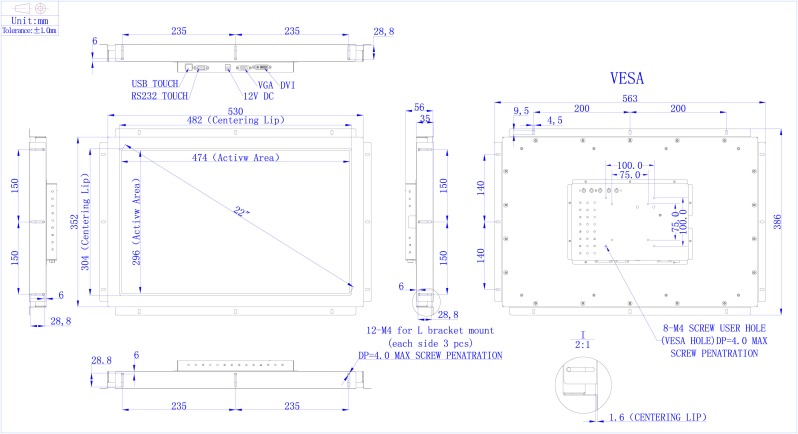

SAW Touch Monitor Mechanical Dimensions
Applications
Widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
- Branch offices widely spreads all over the world,such as
Russia,Brazil,Germany and India etc.
- Comply with ISO9001 quality system,ISO14001 environment management
system and OC080000 limit harmful material management system
certifications.
- Developing a large number of agents and distributors,offering
world-wide sales networks and comprehensive after-sale service
system.
- Products are certificated by CCC, UL, ETL, FCC, CE, CB, RoHS and other international certifications.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the product according to the customer's
requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
offered.
5. What package do you provide for the SAW touch monitor?
Our package usually is carton.
6. What is your delivery time for SAW touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
