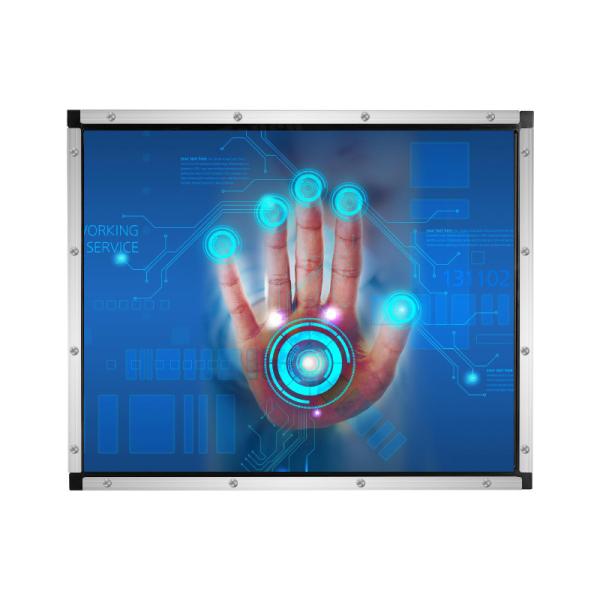

15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display
SAW Touch Monitor Description:
KeeTouch SAW Touch monitor is a plug and play device for easy
operation. It is made of anti-vandal pure glass and 420 nits high
resolution LCD to deliver a clear image display. The surface
acoustic wave touch technology supports accuracy and fast single
touch experience. There are multiple interfaces like VGA, DVI, USB,
RS232. Customized service is available for size, metal case color,
interface, etc.
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0150US-SA4BCW (P/N:KOT-150C-004) |
| Series | OT |
| Display Type | 4:3 Ratio 15" TFT-LCD |
| Active Area | 304.1*228.1(mm) |
| Monitor Dimensions (W*H*D) | 336.4*264.4*43.9(mm) |
| Suggested Resolution | 1024*768 @ 60Hz |
| Support Colors | 16.2M |
| Brightness (Typ.) | Pure LCD Panel | 420cd/m2 |
| With Touch Monitor | 378cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 800:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 30～60KHz / 60～75Hz |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 50,000 Hours |
| LED Back Light Life (Typ.) | 50,000 Hours |
| Weight(N.W/G.W) | 3.5Kg(1pcs)/11Kg(2pcs in one package) |
| Package dimensions | 429*183*356(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤12W |
| Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch Screen Type | KeeTouch 15" SAW 4 mm Compact Touchscreen |
| Touch System Interface | Having USB and Serial(RS232) Interface |
| Touch Response Time | USB/Serial: 8.4/10.4ms |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
SAW Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
Branch offices widely spreads all over the world,such as
Russia,Brazil,Germany and India etc.
Comply with ISO9001 quality system,ISO14001 environment management
system and OC080000 limit harmful material management system
certifications
More than 15 years professional experience in touch product industry.
200 staffs, 45 trained R&D engineers and design teams support OEM / ODM
projects.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also
good service will be offered.
6. What is your delivery time of the SAW touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
