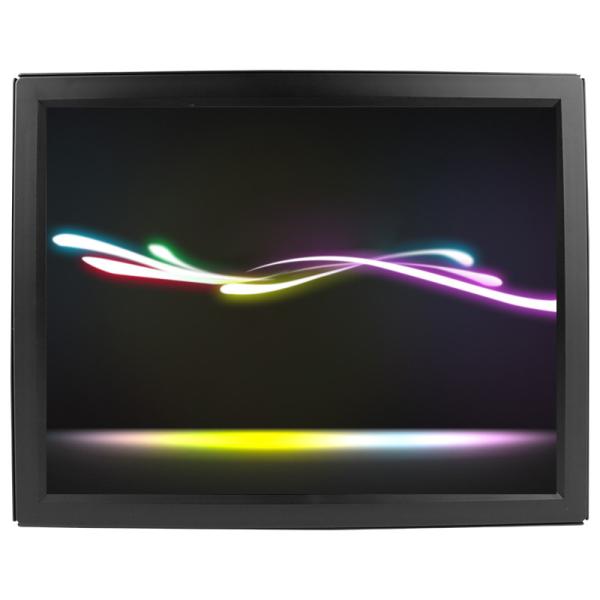

15.6 Inch SAW Touch Monitor 1920x1080 Resolution Interactive Panel
SAW Touch Monitor Description:
KeeTouch SAW touch monitor integrates with SAW touch panel to enjoy
a accurate touch and great interactive experience. The high
resolution LCD screen delivers a great image quality. There are
multiple interfaces like VGA, HDMI, USB, etc. It's compatible with
XP, WIN7, WIN8, WIN10, Linux, Android. Multiple mounting options
include horizontal bracket-mount and vertical bracket. Other sizes
can be offered from 7" to 55".
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0156U-SA4BP (P/N:KOT-156P-004) |
| Series | OT |
| Display Type | 16:9 Ratio 15.6" TFT-LCD |
| Active Area | 344.23*193.54(mm) |
| Monitor Dimensions (W*H*D) | 388.5*237.5*43(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 400cd/m2 |
| With Touch Monitor | 340cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70°/70° |
| Vertical(up/down) | 60°/60° |
| Contrast Ratio (Typ.) | 650:1 |
| Video Input | VGA/HDMI |
| Frequency (H/V) | 30～80KHz / 50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥15,000 Hours |
| LED Back Light Life (Typ.) | ≥15,000 Hours |
| Weight(N.W/G.W) | 3Kg(1pcs)/8.25Kg(2pcs in one package) |
| Package dimensions | 468*150*323(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 15" Surface acoustic wave touch screen |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 346*195(mm) |
| Thickness | 4±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
SAW Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
- Completely and strictly quality control system
- High-tech and innovative enterprise
- Efficient Warehousing and Logistics
- 30,000+ manufacturing capacity per year
- More than 15 years professional experience in touch product
industry
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. Do you have the SAW touch monitor in stock?
Yes, we have a large quantity of stock for our regular model
products.
6. Do you give any discount?
We will do utmost to support you with the competitive price, also
good service will be offered.
