17 Inch SAW Touch Monitor Open Frame 250 Nits LCD Industrial
Display
SAW Touch Monitor Description:
KeeTouch SAW touch monitor designed with waterproof surface
acoustic wave touch technology to ensure an accurate and fast touch
expeience even in harsh environment. The anti scartch touch glass
contributes a long working life span for a single touch more than
50,000,000 times. There are multiple interfaces like VGA, USB,
RS232, etc. Other sizes can be offered for 7" to 55".
SAW Touch Monitor Specifications
| Model No. | KOT-0170U-SA4BCW(P/N:KOT-170C-009) |
| Series | OT,Water-proof and Compact |
| Display Type | 5:4 Ratio 17＂Active matrix TFT-LCD, LED backlight |
| Display Active Area | 13.3＂(338mm)×10.6＂(270mm) |
| Touch Monitor Dimensions | Width: 369mm |
| Width with brackets: 389.4 mm |
| Height: 307mm |
| Height with brackets: 327.4mm |
| Depth: 49mm(not include lip):50mm(include lip) |
| Suggested Resolution | 1280×1024@60Hz |
| Support Colors | 16.7M |
| Brightness(Typ.) | Pure LCD Panel | 250cd/m2 |
| With SAW Glass | 225cd/m2 |
| Response Time(Typ.) | 5ms |
| Viewing Angle | Horizontal(left/right): 170°(85°/85°) |
| (Typ.at CR＞10)) |
| Vertical(up/down): 160°(80°/80°) |
| Contrast Ratio(Typ.) | 1000:01:00 |
| Video Input | Analog RGB |
| Frequency(H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operation Temp: | 0～50°C |
| Storage Temp: | -20～60°C |
| Operation RH: | 20%～80% |
| Storage RH: | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back light Life(Typ.) | 30,000 Hours |
| Weight(N.W/G.W) | N.W :5Kg (Single) /G.W:12.8Kg (2pcs in one package) |
| Package Dimensions | 445(L)*200(W)*395(H)mm(2pcs in one package) |
| Power Consumption | 16W Max. |
| Standby power consumption | 0.95W |
| Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical(Standard mount brackets are
supplied) |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch screen Type | Keetouch 17" SAW 4 mm compact touch sensor |
| Touch System Interface | Having USB interface |
| Touch Response time | USB/ 8.4ms |
| Agency Approval | CCC,ETL,FCC,CE,CB,RoHS |
| Regular Warranty | 1 year |
SAW Touch Monitor Mechanical Dimensions

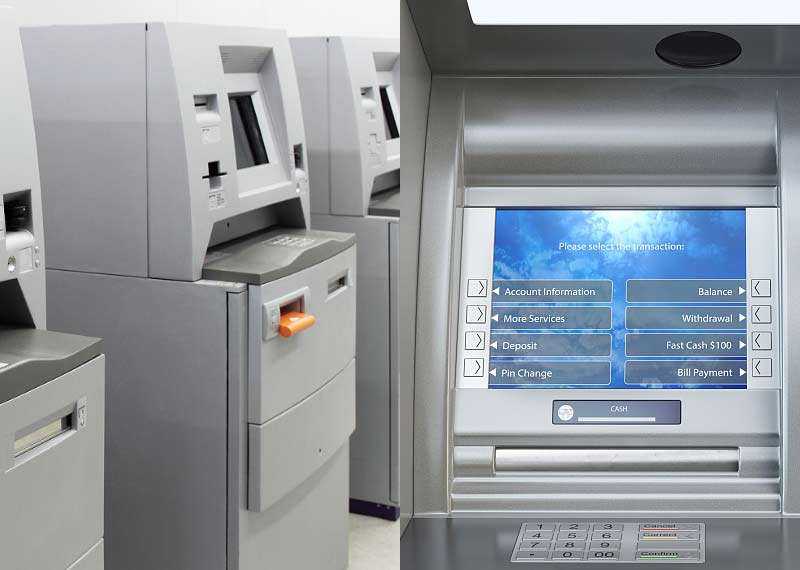

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
- More than 15 years professional experience in touch product industry;
- 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM
projects;
- Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications;
- Developing a large number of agents and distributors,offering
world-wide sales networks and comprehensive after-sale service
system;
- Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc;
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also
good service will be offered.
6. What is your delivery time for the SAW touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
