17 Inch SAW Touch Monitor Anti Vandal High Contrast Ratio LCD Panel
SAW Touch Monitor Description:
KeeTouch SAW touch monitor delivers superior image clarity,
resolution, light transmission, and reliability because it utilizes
clear glass that continues to work even if scratched. The stable,
drift-free operation of Surface Acoustic Wave touchscreen
technology provides an accurate touch response measured on three
axes using a finger, gloved hand, or passive stylus. It's well
compatible with XP, WIN7, WIN8, WIN10, Linux, Android.
SAW Touch Monitor Specifications
| Model No. | KOT-0170U-SA4BCW(P/N:KOT-170C-009) |
| Series | OT,Water-proof and Compact |
| Display Type | 5:4 Ratio 17＂Active matrix TFT-LCD, LED backlight |
| Display Active Area | 13.3＂(338mm)×10.6＂(270mm) |
| Touch Monitor Dimensions | Width: 369mm |
| Width with brackets: 389.4 mm |
| Height: 307mm |
| Height with brackets: 327.4mm |
| Depth: 49mm(not include lip):50mm(include lip) |
| Suggested Resolution | 1280×1024@60Hz |
| Support Colors | 16.7M |
| Brightness(Typ.) | Pure LCD Panel | 250cd/m2 |
| With SAW Glass | 225cd/m2 |
| Response Time(Typ.) | 5ms |
| Viewing Angle | Horizontal(left/right): 170°(85°/85°) |
| (Typ.at CR＞10)) |
| Vertical(up/down): 160°(80°/80°) |
| Contrast Ratio(Typ.) | 1000:01:00 |
| Video Input | Analog RGB |
| Frequency(H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operation Temp: | 0～50°C |
| Storage Temp: | -20～60°C |
| Operation RH: | 20%～80% |
| Storage RH: | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back light Life(Typ.) | 30,000 Hours |
| Weight(N.W/G.W) | N.W :5Kg (Single) /G.W:12.8Kg (2pcs in one package) |
| Package Dimensions | 445(L)*200(W)*395(H)mm(2pcs in one package) |
| Power Consumption | 16W Max. |
| Standby power consumption | 0.95W |
| Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical(Standard mount brackets are
supplied) |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch screen Type | Keetouch 17" SAW 4 mm compact touch sensor |
| Touch System Interface | Having USB interface |
| Touch Response time | USB/ 8.4ms |
| Agency Approval | CCC,ETL,FCC,CE,CB,RoHS |
| Regular Warranty | 1 year |
SAW Touch Monitor Mechanical Dimensions

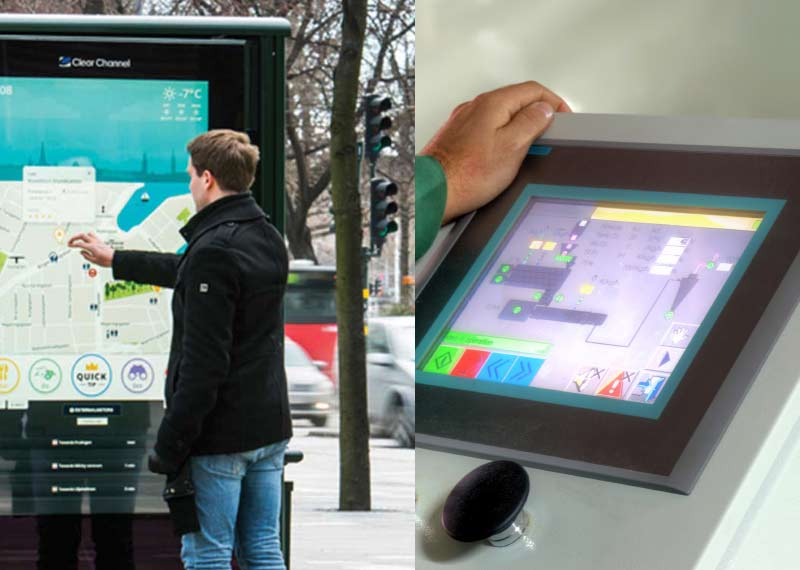

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
- High-tech and innovative enterprise;
- More than 175+ design patents;
- Completely and strictly quality control system;
- 30,000+ manufacturing capacity per year;
- Efficient Warehousing and Logistics;
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. Do you have the SAW touch monitor in stock?
Yes, we have a large quantity of stock for our regular model
products.
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
