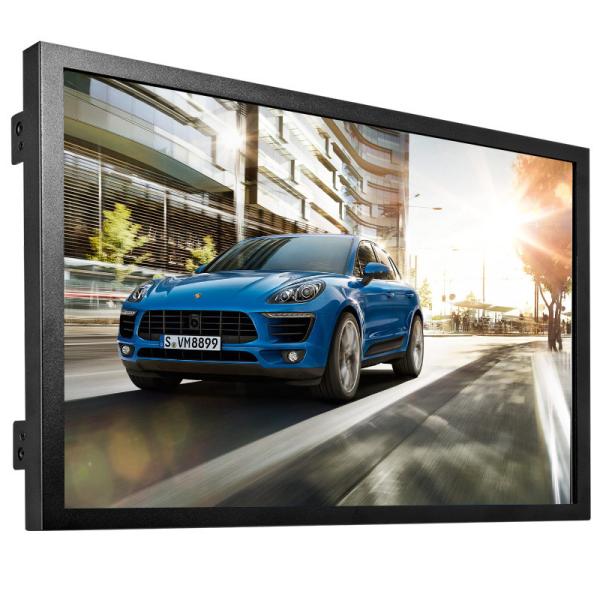

21.5 Inch SAW Touch Monitor Wide TFT LCD Screen For Digital Signage
SAW Touch Monitor Description:
KeeTouch SAW touch monitor delivers superior image clarity,
resolution, light transmission, and reliability because it utilizes
clear glass that continues to work even if scratched. The stable,
drift-free operation of Surface Acoustic Wave touchscreen
technology provides an accurate touch response measured on three
axes using a finger, gloved hand, or passive stylus. It's well
compatible with XP, WIN7, WIN8, WIN10, Linux, Android. Other sizes
can be offered for 7" to 43".
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0215US-SA4BCP (PN: KOT-215C-001) |
| Series | OT |
| Display Type | 16:9 Ratio 21.5" TFT-LCD |
| Active Area | 476.64*268.11(mm) |
| Monitor Dimensions (W*H*D) | 511.7*298*42.6(mm) |
| Suggested Resolution | 1920*1080@ 60Hz |
| Support Colors | 16.2M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 |
| Response Time (Typ.) | 16ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 5.7Kg(1pcs)/13.8Kg(2pcs in one package) |
| Package dimensions | 605*195*400(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 21.5" Surface acoustic wave touch screen |
| Touch input | USB/RS232 |
| Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 478*270(mm) |
| Thickness | 4±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
SAW Touch Monitor Mechanical Dimensions
Applications
Widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
- More than 15 years professional experience in touch product industry;
- 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM
projects;
- 5 production lines including 3 touch screen lines,1 touch monitor
line and 1 hardware accessories line;
- Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc;
- Products are certificated by CCC, UL, ETL, FCC, CE, CB ,RoHS and
other international certifications.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW touch monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. Do you have the SAW touch monitor in stock?
Yes, we have a large quantity of stock for our regular model
products.
