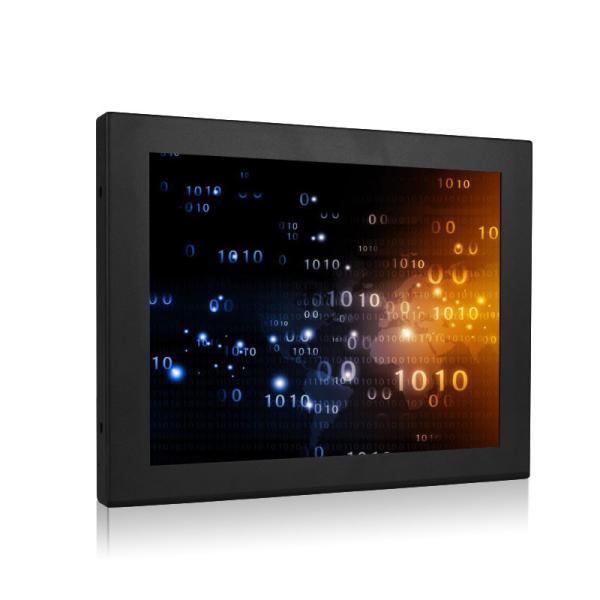

10.4 Inch SAW Touch LCD Monitor Anti Scratch Anti Vandal Screen For
Smart Locker
SAW Touch Monitor Description:
KeeTouch SAW touch monitor integrates with surface acoustic wave
touch technology to deliver a superior image clarity with high
light transmission. It has sensitive and fast touch response
supported by anti-scratch and anti-vandal screen, more than 50
million touches in a single point. Multiple mounting options
include VESA mount, horizontal vertical brackets mount.
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0104U-SA4BP (P/N:KOT-104P-002) |
| Series | OT |
| Display Type | 4:3 Ratio 10.4" TFT-LCD |
| Active Area | 211.2*158.4(mm) |
| Monitor Dimensions (W*H*D) | 257*199*45.5(mm) |
| Suggested Resolution | 800*600 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 270cd/m2 |
| Response Time (Typ.) | 20ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 75°/75° |
| Vertical(up/down) | 50°/60° |
| Contrast Ratio (Typ.) | 500:1 |
| Video Input | VGA |
| Frequency (H/V) | 37.9～46.9KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 50,000 Hours |
| LED Back Light Life (Typ.) | 50,000 Hours |
| Weight(N.W/G.W) | 2.25Kg(pcs) / 6.55Kg(2pcs in one package) |
| Package dimensions | 330*220*280(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1W / Operating Power: ≤8W |
| Mount Interface | 1.VESA 75mm 2.Mount bracket, horizontal or vertical mount
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 10.4" Surface acoustic wave touch screen |
| Touch input | USB |
| Response Time | ≤8ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10 |
| Active Area | 212*159(mm) |
| Thickness | 4.0±0.1(mm) |
| Touch Test | 50,000,000 times |
| Input Voltage | 5V |
SAW Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
Our Advantages:
- Completely and strictly quality control system.
- Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications.
- Developing a large number of agents and distributors,offering
world-wide sales networks and comprehensive after-sale service
system.
- Products are certificated by CCC, UL, ETL, FCC, CE, CB ,RoHS and other international certifications.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Do you have the SAW Touch Monitor in stock?
Yes, we have a large quantity of stock for our regular model
products.
5. Do you give any discount for the SAW Touch Monitor?
We will do utmost to support you with the competitive price, also
good service will be offered.
