Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive
Display
SAW Touch Monitor Description:
KeeTouch SAW touch monitor integrates with industrial grade LED
with low power consumption. By applied with surface acoustic wave
touch technology, it delivers a fast and accurate touch experience.
The compact outer shell design and VESA holes behind rear cover are
convenient for installation. Other sizes are optional for choosing from 7" to 43"
SAW Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0190US-SA4BCW (P/N:KOT-190C-013) |
| Series | OT |
| Display Type | 5:4 Ratio 19" TFT-LCD |
| Active Area | 376.32*301.06 (mm) |
| Monitor Dimensions (W*H*D) | 416*344*54(mm) |
| Suggested Resolution | 1280x1024 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 37.9 -80KHz/ 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥50,000 Hours |
| LED Back Light Life (Typ.) | ≥50,000 Hours |
| Weight(N.W/G.W) | 5Kg(1pcs)/13.5Kg(2pcs in one package) |
| Package dimensions | 530*250*460(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 19" Surface acoustic wave touch screen |
| Touch input | USB/RS232 |
| Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 382*305(mm) |
| Thickness | 4±0.1(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
SAW Touch Monitor Mechanical Dimensions

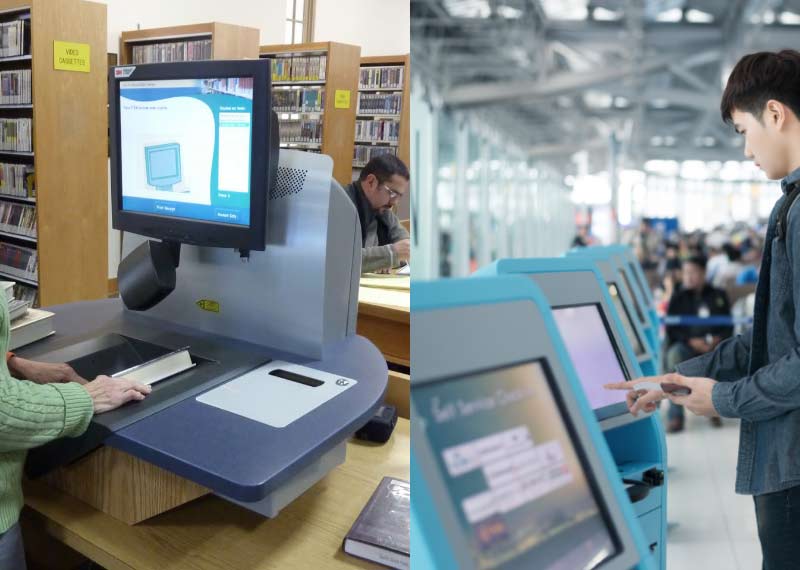

Applications
Widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments, etc.
Our Advantages:
- Efficient Warehousing and Logistics
Branch offices widely spreads all over the world,such as
Russia,Brazil,Germany and India etc.
Products are certificated by CCC, UL, ETL, FCC, CE, CB ,RoHS and
other international certifications.
Developing a large number of agents and distributors,offering
world-wide sales networks and comprehensive after-sale service
system.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3
years Warranty (optional).
4. Can you produce the SAW Touch Monitor according to the
customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
offered.
5. What are the shipping ways of the SAW Touch monitor?
We will ship the goods according to customer’s requirement. For
sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or
by sea.
