14 Inch PCAP IP65 Surface Waterproof Touch Monitor For Kiosks

Ask Lasest Price
Brand Name :	KeeTouch
Model Number :	KOT-140P-002(KOT-0140U-CA4P)
Certification :	FCC, CE, CB, RoHS,UL,BIS
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	10000 Pieces per Week
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

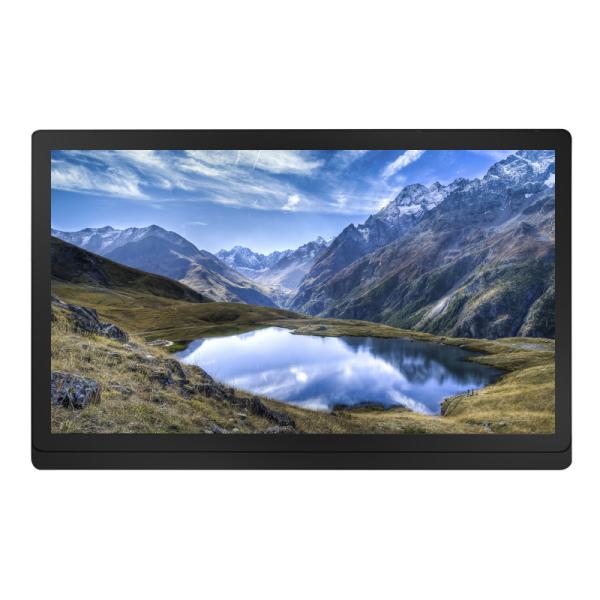

14 Inch PCAP IP65 Surface Waterproof Touch Monitor For Kiosks

14 Inch PCAP Touch Monitor IP65 Surface Waterproof For Kiosks

PCAP Touch Monitor Description

With PCAP touch technology, support 10 points multi-touch
Vandal proof, scratch resistant and IP65 surface waterproof PCAP touch monitor
≥30,000 hours MTBF, lasting touch, durable even in harsh environment
High resolution PCAP touch monitor with high quality image
VGA + DVI interfaces,USB for touch
Multiple mounting options include VESA mount, horizontal and vertical brackets mount
Operation system: XP, WIN7, WIN8
Other sizes are available (7’’- 43’’)

PCAP Touch Monitor Specifications

Complete Machine
Model No.	KOT-0140U-CA4P (P/N:KOT-140P-002)
Series	OT
Display Type	16:9 Ratio 14" TFT-LCD
Active Area	311*176(mm)
Monitor Dimensions (WHD)	340214.8436.9(mm)
Suggested Resolution	1920*1080 @ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	200cd/m²
	With Touch Monitor	170cd/m²
Response Time (Typ.)	8ms
Viewing Angle(Typ.at CR＞10))	Horizontal(left/right)	80°/80°
	Vertical(up/down)	80°/80°
Contrast Ratio (Typ.)	800:1
Video Input	VGA/DVI
Frequency (H/V)	37.8～68.4KHz / 50～76Hz
Power Supply	Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	≥30,000 Hours
LED Back Light Life (Typ.)	≥30,000 Hours
Power Consumption	Standby Power: ≤1.5W / Operating Power: ≤15W
Mount Interface	Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty	1 year

Touch Screen
Touch Type	14" Capacitive touch screens
Touch input	USB
Response Time	≤10ms
Hardness	6H
Light Transmittance	≥85%
Support System	XP,WIN7,WIN8
Active Area	309.31*173.99(mm)
Thickness	4.3±0.2(mm)
Touch Test	≥50,000,000 times
Input Voltage	DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

PCAP Touch Monitor Mechanical Dimensions

Our Advantages

Comprehensive product lines including PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PCs, sheet metal cases.
Monthly capacity is more than 30,000 pcs
Products you received are inspected by rigorous reliability testing, such as burn-in test, anti-vibration test, high low temperature test to ensure quality.

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
