420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input

    Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers

    Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers
    • Buy cheap 420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input from wholesalers

    420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input

    Ask Lasest Price
    Brand Name : KeeTouch
    Model Number : KOT-0150US-SA6BW
    Certification : CCC, UL, FCC, CE, CB, RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces per Week
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input

    420cd/m2 LCD Panel 15" Touch Screen Monitor With VGA DVI Video Input


    SAW Touch Monitor Main Features:

    • With SAW touch technology, high sensitivity and fast response

    • High resolution, high contrast ratio SAW touch Monitor with high-quality image

    • IP65 front frame waterproof SAW touch monitor

    • VGA & DVI interfaces,USB for touch

    • Multiple mounting options include VESA mount, horizontal and vertical brackets mount

    • Operation system: XP, WIN7, WIN8, WIN10, Linux, Android

    • Other sizes are for your option (7’’- 43’’)

    SAW Touch Monitor Specifications


    Complete Machine
    Model No.KOT-0150US-SA6BW (P/N:KOT-150W-020)
    SeriesOT
    Display Type4:3 Ratio 15" TFT-LCD
    Active Area304*228(mm)
    Monitor Dimensions (W*H*D)347*271*51(mm)
    Suggested Resolution1024*768 @ 60Hz
    Support Colors16.2M
    Brightness (Typ.)Pure LCD Panel420cd/m2
    With Touch Monitor378cd/m2
    Response Time (Typ.)16ms
    Viewing Angle(Typ.at CR>10))Horizontal(left/right)80°/80°
    Vertical(up/down)80°/80°
    Contrast Ratio (Typ.)1000:1
    Video InputVGA/DVI
    Frequency (H/V)30~80KHz / 60~75Hz
    Power Supply

    Type: External brick

    Display voltage: DC 12V±5%

    Input (line) voltage: 100-240 VAC, 50-60 Hz

    EnvironmentOperating Temp.0~50°C
    Operating RH20%~80%
    Storage Temp.-20~60°C
    Storage RH10%~90%
    MTBF≥50,000 Hours
    LED Back Light Life (Typ.)≥50,000 Hours
    Weight(N.W/G.W)3Kg(1pcs)/9Kg(2pcs in one package)
    Package dimensions422*177*351(mm)(2pcs in one package)
    Power ConsumptionStandby Power: ≤1.5W / Operating Power: ≤20W
    Mount Interface

    1.VESA 75mm and 100mm

    2.Mount bracket, horizontal or vertical mount

    OSD ControlButtonsAUTO,+,POWER,-,MENU
    FunctionBrightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Agency approvalsCCC, UL, FCC, CE, CB, RoHS
    Regular Warranty1 year
    Touch Screen
    Touch Type15" Surface acoustic wave touch screen
    Touch inputUSB/RS232
    Response Time≤8ms
    Hardness7H
    Light Transmittance≥90%
    Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
    Active Area304*228(mm)
    Thickness6±0.2(mm)
    Touch Test≥50,000,000 times
    Input VoltageDC 5V±5%

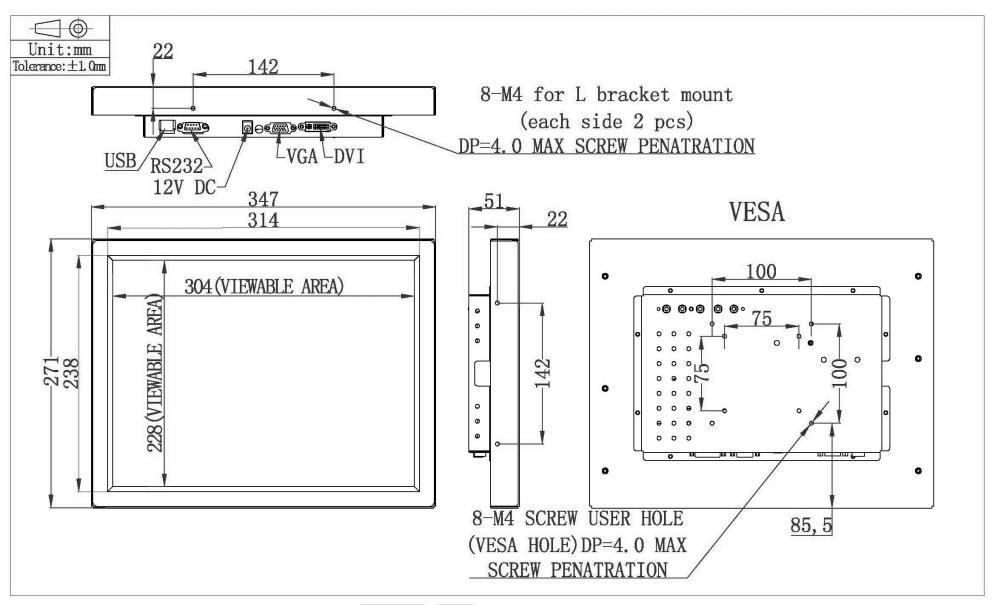

    SAW Touch Monitor Mechanical Dimensions

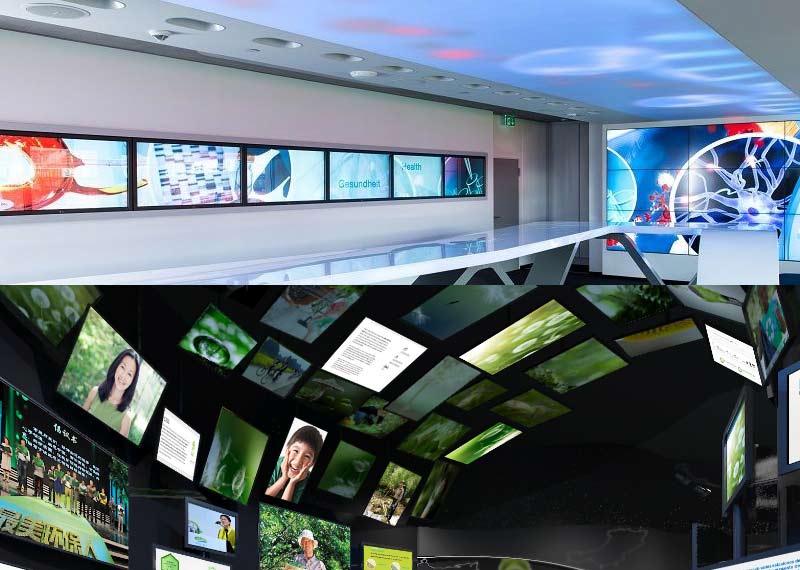

    Applications


    KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



    FAQ


    1. Are you a manufacturer?

    Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


    2. What’s your MOQ for the SAW Touch Monitor?

    Our minimum order quantity is 1pc only.


    3. What is your warranty period for the SAW Touch Monitor?

    Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


    4. Can you produce the SAW Touch Monitor according to the customer's requirements?

    Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
