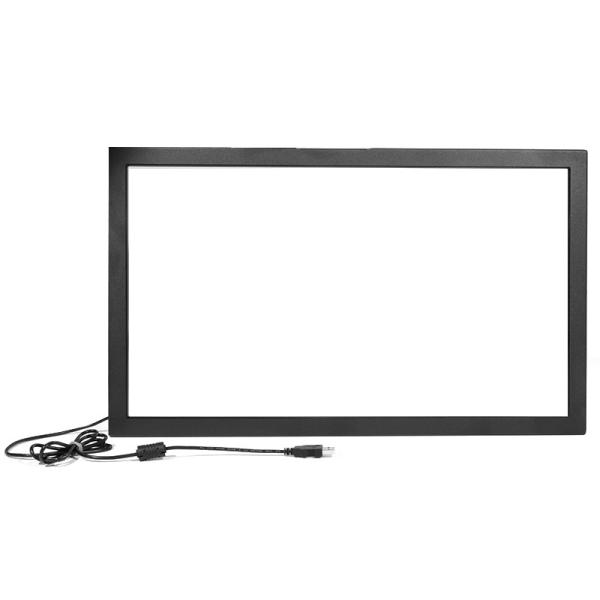

21.5 Inch Infrared Touch Screen Four Points Touch For Indoor
Outdoor
Infrared Touch Monitor Main Features
KeeTouch infrared touch screens, four points multi touch for
accurate positioning
Narrow frame, ultra-thin designed infrared touch screen, easy for
integration
Vandal-proof and IP65 front side waterproof infrared touch screen
>92% high light transparency, ideal touch experience
High stability, durable even in harsh environmental conditions
USB interface for touch input, support various OS
Other sizes (15’’- 86’’) can be offered
Infrared Touch Screen Specifications
| Model No. | KMI -U0215M3-R3G-01 |
| Housing | Metal |
| Outside Dimensions | 520±0.5mm(L) ×312±0.5mm(W) ×9±1mm(H) |
| Active Area | 478±0.5mm(L) ×270±0.5mm(W) |
| Aspect Ratio | 16:9 |
| Net Weight | 1.9Kg |
| Glass | 3mm toughened glass, Transparence : >92%
The light transmittance is decided by the glass
Anti-dazzle glass can be customizable |
| Touch Medium | Light-tight object.like Finger or touch pen |
| Touch Activation Force | Non minimum activation force |
| Position Accuracy | 1.5mm(center area), 2.5mm(edge area) |
| The depth Of The Touch | ＜5mm |
| Resolution | 4096 × 4096 |
| Response Time | ≤32ms |
| The Size Of The Touch Medium | ≥Ø8mm |
| Touch Lifetime | More than 50 million times |
| Power requirements | Voltage DC ±5V,Minimum current 500mA |
| Operating Current | ＜200mA |
| Power Consumption | ＜2W
The typical average power consumption＜0.8W |
| Electrostatic Discharge | Touch Discharge:4KV |
| Air Discharge:8KV |
| Temperature | operating:0°C ~ 50°C |
| storage:-30°C ~ 60°C |
| Humidity | operating:20% ~ 85% |
| storage: 0% ~ 95% |
| Light Resistance | Incandescent lamp (220V,60W) ,above the touch screen
plane 200 mm |
| Interface | USB2.0 full speed (The standard type A connector) |
| Waterproofness | IP65 (The front panel) |
| Operating Environment | Indoor and outdoor |
| Applicative Screen | LED,LCD,PDP etc. |
Infrared Touch Mechanical Dimensions
Applications
Widely used in industries such as retail, gaming, kiosk,
self-service, finance, transit, conference, education, healthcare,
public service, e-commerce, hotels, restaurants, travel service,
payment systems, museums, exhibitions, smart home, subways, railway
stations, control and operation systems, airports, entertainments,
etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over
16 years, located in Shenzhen, China.
2. What’s your MOQ for infrared touch screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period for infrared touch screen?
Our regular warranty is 12 month for all the products, with 2-3
years Warranty (optional).
4. Can you produce the infrared touch screen according to the
customer's requirement?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory order, 7-15 business days for bulk
production.
